固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPLA-2-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
4,600 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.189" (4.80mm) |
|
HC2-R47-RFIXED IND 470NH 52.9A 0.6MOHM SM Eaton - Electronics Division |
945 |
|
数据手册 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 470 nH | ±20% | 52.9 A | 63.75A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
HCP0704-R40-RFIXED IND 400NH 17A 3.2 MOHM SMD Eaton - Electronics Division |
2,976 |
|
数据手册 |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 400 nH | ±25% | 17 A | 27A | Shielded | 3.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
HC8-1R9-RFIXED IND 1.9UH 12.4A 7.7MOHM SM Eaton - Electronics Division |
4,041 |
|
数据手册 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.9 µH | ±20% | 12.4 A | 20.9A | Unshielded | 7.7mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
HC8-3R5-RFIXED IND 3.5UH 8.5A 16.5MOHM SM Eaton - Electronics Division |
2,275 |
|
数据手册 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.5 µH | ±20% | 8.5 A | 15.3A | Unshielded | 16.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
|
HC8-100-RFIXED IND 10UH 5.2A 43.6MOHM SMD Eaton - Electronics Division |
596 |
|
数据手册 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 5.2 A | 9.2A | Unshielded | 43.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|

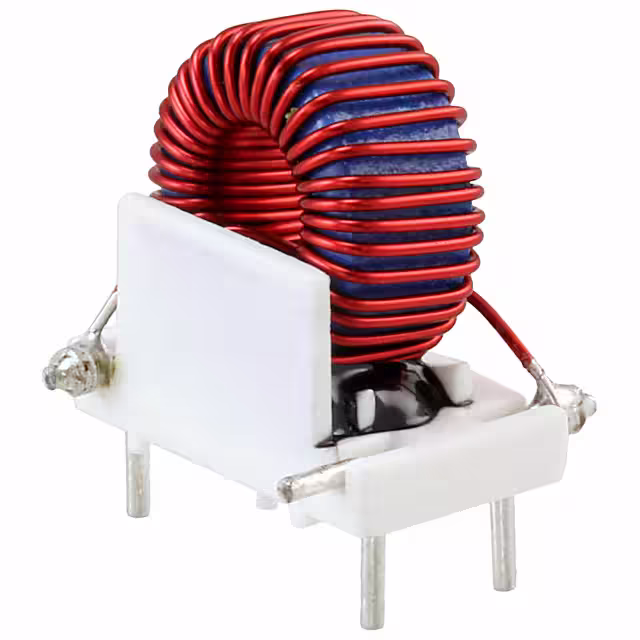

CTX50-1-52M-RFIXED IND 50UH 2.6A 71.5 MOHM TH Eaton - Electronics Division |
2,252 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 2.6 A | 2.7A | Unshielded | 71.5mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.787" (20.00mm) |
|
|
CTX01-18016-RFIXED IND 250UH Eaton - Electronics Division |
4,608 |
|
数据手册 |
- | - | Tray | Active | - | - | 250 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCM1A1305-220-RFIXED IND 22UH 3.5A 51.8MOHM SMD Eaton - Electronics Division |
380 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 3.5 A | 6.8A | Shielded | 51.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
CLH1110R1-3-R050-RFIXED IND 300NH 0.00023OHM SMD Eaton - Electronics Division |
3,799 |
|
数据手册 |
CLH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | - | 25A | - | 0.23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 0.886" L x 0.433" W (22.50mm x 11.00mm) | 0.394" (10.00mm) |
