固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1104-150-RFIXED IND 15UH 3.8A 50 MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 3.8 A | 6.8A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM1A1104-1R0-RFIXED IND 1UH 16A 3.3 MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 16 A | 20A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
UP2-680-RFIXED IND 68UH 1.7A 189.8MOHM SM Eaton - Electronics Division |
600 |
|
数据手册 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.7 A | 1.2A | Unshielded | 189.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
DRA127-471-RFIXED IND 470UH 827MA 910MOHM SM Eaton - Electronics Division |
350 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 827 mA | 1.62A | Shielded | 910mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SD3118-4R7-RFIXED IND 4.7UH 1.02A 162MOHM SM Eaton - Electronics Division |
4,098 |
|
数据手册 |
SD3118 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.02 A | 1.31A | Shielded | 162mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.071" (1.80mm) |
|
DRAP127-102-RFIXED IND 1MH 598MA 2.1 OHM SMD Eaton - Electronics Division |
686 |
|
数据手册 |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 598 mA | 1.1A | Shielded | 2.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
UP2-6R8-RFIXED IND 6.8UH 5A 23 MOHM SMD Eaton - Electronics Division |
550 |
|
数据手册 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5 A | 3.6A | Unshielded | 23mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
FP1010R3-R220-RIND FLAT PAC 220NH 63A 2 PADS Eaton - Electronics Division |
500 |
|
数据手册 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 78 A | 38A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|

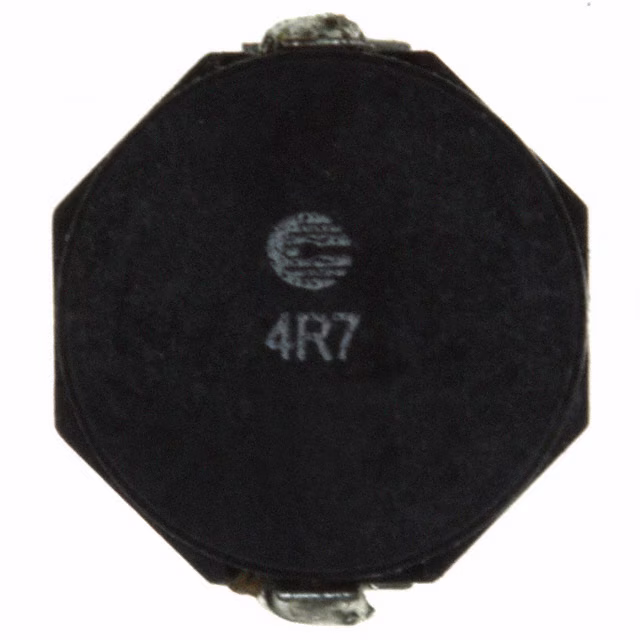

SD8350-4R7-RFIXED IND 4.7UH 4.1A 22 MOHM SMD Eaton - Electronics Division |
750 |
|
数据手册 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
|
EXLA1V1010-150-RIND MOLD SHLD 15UH 9.9A SMT Eaton - Electronics Division |
830 |
|
数据手册 |
EXLA1V10 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 13.8 A | 12.5A | Shielded | 19.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
