固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHCCI1210F-4R7MSMD SHIELDED POWER INDUCTOR |
2,542 |
|
数据手册 |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 12 A | 11A | Shielded | 8.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
|
CTHCCI1210F-1R0MSMD SHIELDED POWER INDUCTOR |
2,950 |
|
数据手册 |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 30 A | 28A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
|
CTHCCI1210F-2R2MSMD SHIELDED POWER INDUCTOR |
2,125 |
|
数据手册 |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 21 A | 18A | Shielded | 4.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|

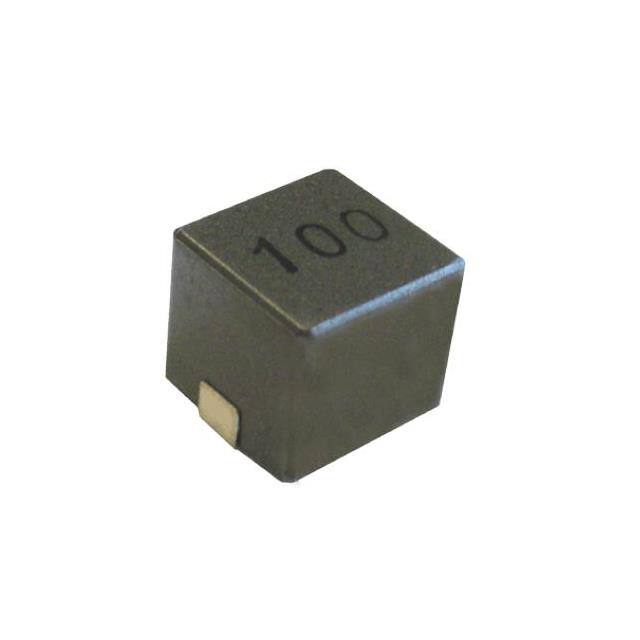

CTHCCI1090F-1R0MSMD SHLDED POWER INDUCTOR |
4,777 |
|
数据手册 |
CTHCCI1090F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 17 A | 21A | Shielded | 2.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.409" W (11.30mm x 10.40mm) | 0.382" (9.70mm) |
|
|
CTHCCI1090F-3R3MSMD SHIELDED POWER INDUCTOR |
4,510 |
|
数据手册 |
CTHCCI1090F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 11 A | 10A | Shielded | 7.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.409" W (11.30mm x 10.40mm) | 0.382" (9.70mm) |
|
|
CTHCCI1210F-R47MSMD SHIELDED POWER INDUCTOR |
3,219 |
|
数据手册 |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 35 A | 45A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
|
CTHCCI1090F-100MSMD SHLDED POWER INDUCTOR |
4,046 |
|
数据手册 |
CTHCCI1090F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7 A | 5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.409" W (11.30mm x 10.40mm) | 0.382" (9.70mm) |
|
CT8645LLF-102L-THLO CORE LOSS HI-I TOROID INDCTOR |
4,884 |
|
数据手册 |
ct8645llf | - | Bulk | Active | Toroidal | - | 1 mH | ±15% | - | - | - | 284mOhm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT8645LLF-102L-TVLO CORE LOSS HI-I TOROID INDCTOR |
4,675 |
|
数据手册 |
ct8645llf | - | Bulk | Active | Toroidal | - | 1 mH | ±15% | - | - | - | 284mOhm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|

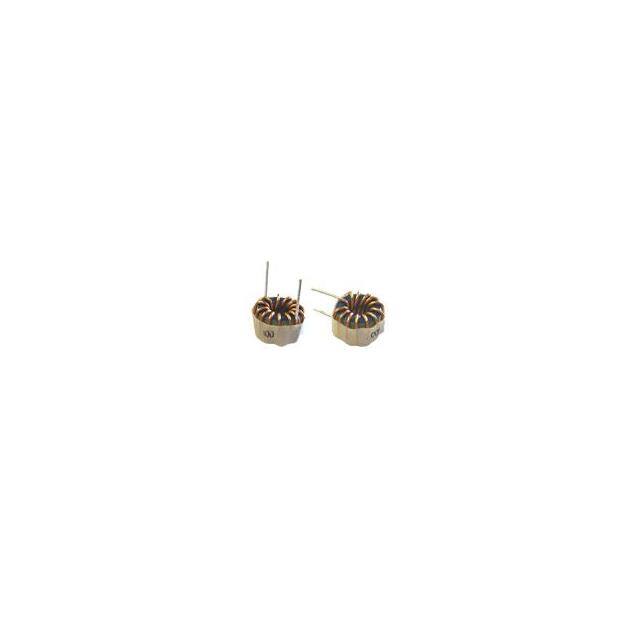

CT9555F-100-THHIGH CURRENT TOROID INDUCTOR |
3,543 |
|
数据手册 |
ct9555f | - | Bulk | Active | Wirewound | - | 10 µH | ±15% | - | - | - | 7mOhm | - | - | - | -55°C ~ 105°C | - | - | Through Hole | - | - | - |
|
|
CT9555F-102-THHIGH CURRENT TOROID INDUCTOR |
1,493 |
|
数据手册 |
ct9555f | - | Bulk | Active | Wirewound | - | 1 mH | ±15% | - | - | - | 280mOhm | - | - | - | -55°C ~ 105°C | - | - | Through Hole | - | - | - |
|
|
CT9555F-102-TVHIGH CURRENT TOROID INDUCTOR |
3,840 |
|
数据手册 |
ct9555f | - | Bulk | Active | Wirewound | - | 1 mH | ±15% | - | - | - | 280mOhm | - | - | - | -55°C ~ 105°C | - | - | Through Hole | - | - | - |
|
|
CT9555F-100-TVHIGH CURRENT TOROID INDUCTOR |
1,722 |
|
数据手册 |
ct9555f | - | Bulk | Active | Wirewound | - | 10 µH | ±15% | - | - | - | 7mOhm | - | - | - | -55°C ~ 105°C | - | - | Through Hole | - | - | - |
|

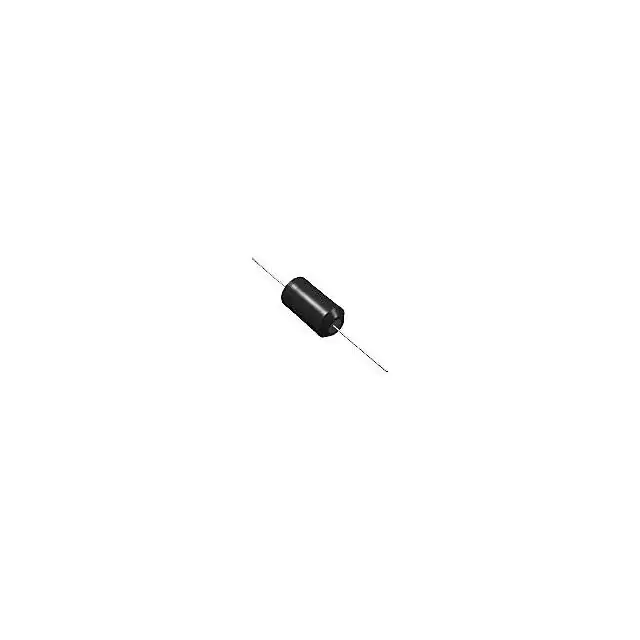

CTH8F-270K27UH AXIAL PWR LINE INDUCTOR |
2,361 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 27 µH | ±10% | 4 A | 5.36A | Unshielded | 27mOhm Max | - | 9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-182K1800UH AXIAL PWR LINE INDUCTOR |
2,381 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 1.8 mH | ±10% | 600 mA | 640mA | Unshielded | 1.56Ohm Max | - | 720kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-123K12000UH AXIAL PWR LINE INDUCTOR |
3,724 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 12 mH | ±10% | 160 mA | 257mA | Unshielded | 9.99Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-120K12UH AXIAL PWR LINE INDUCTOR |
3,596 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 12 µH | ±10% | 4 A | 8.21A | Unshielded | 19mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-391K390UH AXIAL PWR LINE INDUCTOR |
1,808 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 390 µH | ±10% | 1.6 A | 1.39A | Unshielded | 281mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-5R6K5.6UH AXIAL PWR LINE INDUCTOR |
1,254 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 5.6 µH | ±10% | 4 A | 12.6A | Unshielded | 11mOhm Max | - | 29MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-273K27000UH AXIAL PWR LINE INDUCTOR |
3,847 |
|
数据手册 |
CTH8F | Axial | Bulk | Active | - | - | 27 mH | ±10% | 130 mA | 171mA | Unshielded | 18.6Ohm Max | - | 150kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
