固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

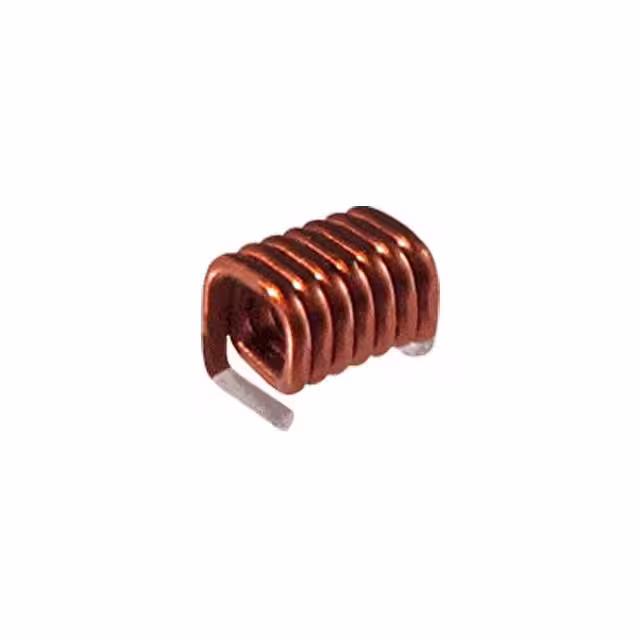

CT0807SQF-6N9JSMD SQUARE AIR CORE INDUCTOR |
4,862 |
|
数据手册 |
ct0807sqf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.9 nH | ±5% | - | - | - | 6mOhm | - | 4.6GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CTMC2220F-122J1200UH FERRITE CORE WW INDUCTOR |
3,986 |
|
数据手册 |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 mH | ±5% | 75 mA | - | Unshielded | 17Ohm Max | 20 @ 252kHz | 1.5MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
|
CTMC2220F-182J1800UH FERRITE CORE WW INDUCTOR |
4,346 |
|
数据手册 |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±5% | 60 mA | - | Unshielded | 30Ohm Max | 20 @ 252kHz | 1.3MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
CT0908SQF-27NJSMD SQUARE AIR CORE INDUCTOR |
4,770 |
|
数据手册 |
ct0908sqf | - | Tape & Reel (TR) | Active | Wirewound | - | 27.3 nH | ±5% | - | - | - | 10mOhm | - | 3.2GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CTDO3308PF-47347UH SMD POWER INDUCTOR |
2,762 |
|
数据手册 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1 A | 1.3A | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CTDO3340PF-684680UH SMD POWER INDUCTOR |
3,710 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3340PF-15315UH SMD POWER INDUCTOR |
1,266 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 7A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3308PF-22322UH SMD POWER INDUCTOR |
2,199 |
|
数据手册 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.5 A | 1.8A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|

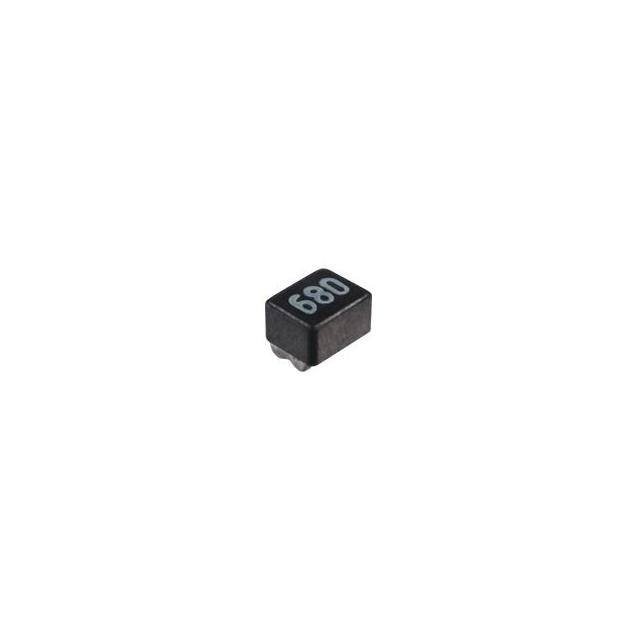

CT1210SF-1R2MSMD SHIELDED WIRE-WOUND INDUCTOR |
2,197 |
|
数据手册 |
CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 390 mA | - | Shielded | 750mOhm Max | 50 @ 2.52MHz | 180MHz | - | -35°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-3R9MSMD SHIELDED WIRE-WOUND INDUCTOR |
3,391 |
|
数据手册 |
CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±20% | - | - | Shielded | - | - | - | - | -35°C ~ 85°C | - | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-220MSMD SHIELDED WIRE-WOUND INDUCTOR |
1,361 |
|
数据手册 |
CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | - | - | Shielded | - | - | - | - | -35°C ~ 85°C | - | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-100MSMD SHIELDED WIRE-WOUND INDUCTOR |
3,636 |
|
数据手册 |
CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 185 mA | - | Shielded | 2Ohm Max | 30 @ 2.52MHz | 25MHz | - | -35°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CTMC2220F-332J3300UH FERRITE CORE WW INDUCTOR |
4,561 |
|
数据手册 |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 mH | ±5% | 40 mA | - | Unshielded | 60Ohm Max | 20 @ 252kHz | 1MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
|
CTMC2220F-822J8200UH FER CORE WIRE-WND INDUCTR |
3,401 |
|
数据手册 |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 mH | ±5% | - | 28A | Unshielded | 125Ohm Max | 20 @ 252kHz | 600kHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
CTMMP2818AF-100MSMD Shielded Power Inductor |
1,486 |
|
数据手册 |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 7.5 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.189" (4.80mm) |
|
CTCDRH105RF-6R8N6.8UH SMD SHIELDED POWR INDUCTOR |
3,028 |
|
数据手册 |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 5.5A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
CTCDRH105RF-120N12UH SMD SHIELDED POWER INDUCTOR |
1,815 |
|
数据手册 |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | - | 4A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|

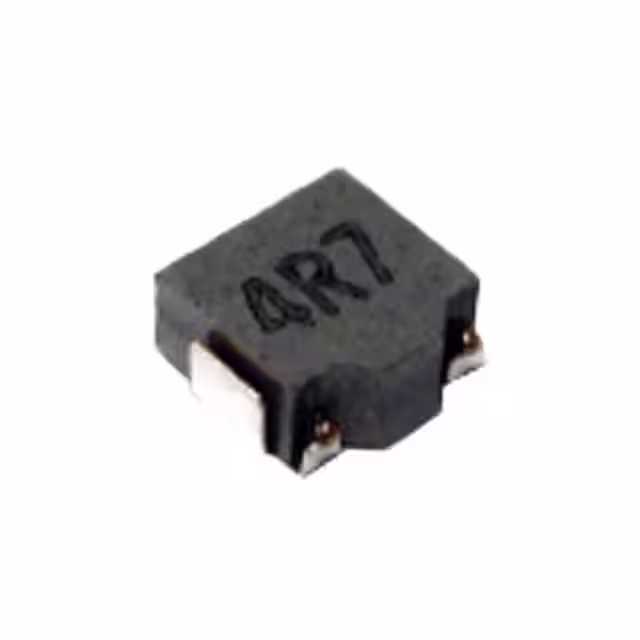

CTSPMA4020F-4R7MPOWR INDUCTOR SMD SHIELDED 4.7UH |
1,765 |
|
数据手册 |
CTSPMA4020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.7 A | 4A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.079" (2.00mm) |
|
|
CTCDRH105RF-221N220UH SMD SHIELDED POWR INDUCTOR |
2,202 |
|
数据手册 |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±30% | - | 940mA | Shielded | 500mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
CTCDRH2D09F-100N10UH SMD SHIELDED POWER INDUCTOR |
1,351 |
|
数据手册 |
CTCDRH2D09F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 420 mA | 280mA | Shielded | 538mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
