固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLB104T-3R3MSFIXED IND 3.3UH 10A 12 MOHM SMD Delta Electronics/Cyntec |
811 |
|
数据手册 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 10 A | 13.5A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLS104T-R22MSFIXED IND 220NH 40A 0.95MOHM SMD Delta Electronics/Cyntec |
811 |
|
数据手册 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 40 A | 75A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-220MSFIXED IND 22UH 5A 66 MOHM SMD Delta Electronics/Cyntec |
397 |
|
数据手册 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 5 A | 5.4A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLS104T-3R3MSFIXED IND 3.3UH 10.7A 11.8 MOHM Delta Electronics/Cyntec |
1,225 |
|
数据手册 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 10.7 A | 21A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-R22MSFIXED IND 220NH 36A 0.93MOHM SMD Delta Electronics/Cyntec |
433 |
|
数据手册 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 36 A | 59A | Shielded | 0.93mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-2R2MSFIXED IND 2.2UH 12A 7MOHM SMD Delta Electronics/Cyntec |
300 |
|
数据手册 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 12 A | 16A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|

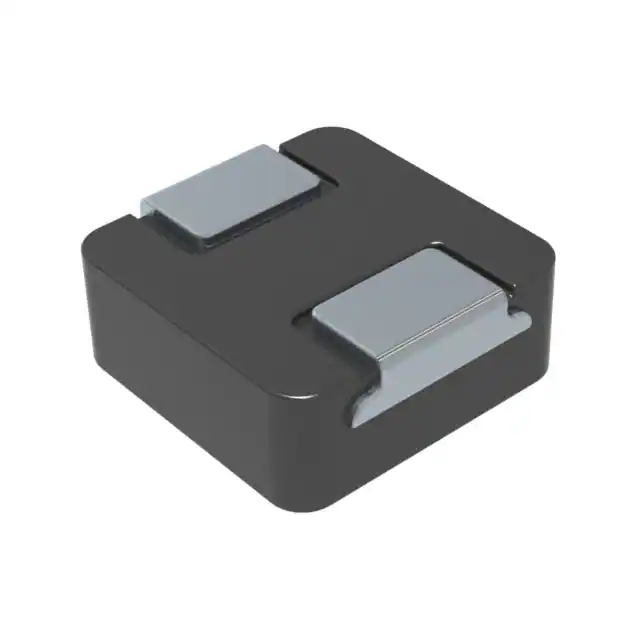

VCMI105T-220MS5FIXED IND 22UH 5.3A 69 MOHM SMD Delta Electronics/Cyntec |
245 |
|
数据手册 |
VCMI105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±3% | 5.3 A | 6.6A | Unshielded | 69mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CMLS136E-2R2MSFIXED IND 2.2UH 22.5A 4.2MOHM SM Delta Electronics/Cyntec |
286 |
|
数据手册 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 22.5 A | 42A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
CMLB135T-3R3MSFIXED IND 3.3UH 15.5A 7MOHM SMD Delta Electronics/Cyntec |
1,782 |
|
数据手册 |
CMLB135T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 15.5 A | 19.5A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CMLS136E-R68MSFIXED IND 680NH 33A 1.7MOHM SMD Delta Electronics/Cyntec |
990 |
|
数据手册 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 33 A | 70A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
