固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTLVC8040F-3R3N3.3UH SMD POWER INDUCTOR Central Technologies |
2,015 |
|
数据手册 |
CTLVC8040F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±30% | 5.4 A | 6.75A | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
CT1008CSF-181JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,015 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±5% | - | - | - | 770mOhm | - | 750MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-392JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±5% | - | - | - | 3.6Ohm | - | 100MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-621GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 620 nH | ±2% | - | - | - | 1.4Ohm | - | 375MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-680JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 68 nH | ±5% | - | - | - | 200mOhm | - | 1.3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-911JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,990 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 910 nH | ±5% | - | - | - | 1.7Ohm | - | 320MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-100JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,785 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±5% | - | - | - | 80mOhm | - | 4.1GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-180JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,500 |
|
数据手册 |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 18 nH | ±5% | - | - | - | 110mOhm | - | 2.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

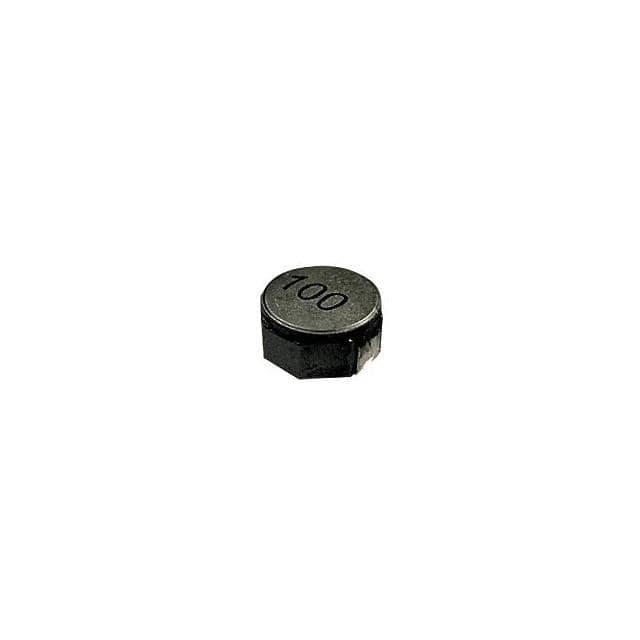

CTCDRH8D38F-1R8N1.8UH SMD SHIELDED POWR INDUCTOR Central Technologies |
3,000 |
|
数据手册 |
CTCDRH8D38F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±30% | - | 7A | Shielded | 15.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
CTHC1812SF-101KSMD FERRITE CORE WW INDUCTOR Central Technologies |
7,005 |
|
数据手册 |
CTHC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
