固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

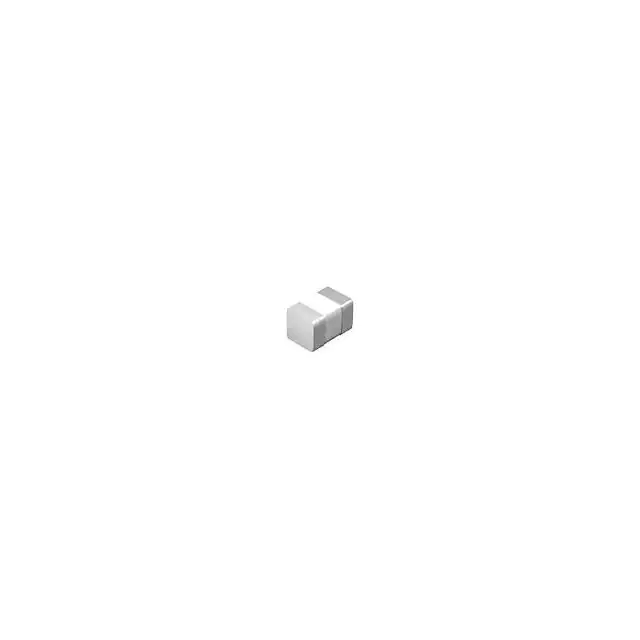

CTLL1608F-FH27NJ27NH SMD CER CORE MULT INDUCTOR Central Technologies |
3,700 |
|
数据手册 |
CTLL1608F-FH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 500 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 1.9kHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CT0402CSF-3N6JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
4,220 |
|
数据手册 |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 3.6 nH | ±5% | - | - | - | 60mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-1N0KSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
4,056 |
|
数据手册 |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 1 nH | ±10% | - | - | - | 40mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-33NGSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,266 |
|
数据手册 |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 33 nH | ±2% | - | - | - | 410mOhm | - | 2.2GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-18NJSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,815 |
|
数据手册 |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 18 nH | ±5% | - | - | - | 250mOhm | - | 3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTMC1210SF-470KSMD FERRITE CORE WW INDUCTOR Central Technologies |
1,095 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 60 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
CT0805CSF-561GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
12,122 |
|
数据手册 |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±2% | - | - | - | 1.9Ohm | - | 340MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-3N0JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
5,690 |
|
数据手册 |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3 nH | ±5% | - | - | - | 60mOhm | - | 7.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-221GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
4,169 |
|
数据手册 |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±2% | - | - | - | 700mOhm | - | 850MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-050JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,652 |
|
数据手册 |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.6 nH | ±5% | - | - | - | 80mOhm | - | 5.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
