固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTML0805F-R68K680NH FER MULTIL SHLD INDUCTOR Central Technologies |
4,000 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±10% | 150 mA | - | Shielded | 800mOhm Max | 25 @ 25MHz | 105MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-3R9JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
4,000 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Bulk | Active | Multilayer | Ferrite | 3.9 µH | ±5% | 30 mA | - | Shielded | 900mOhm Max | 45 @ 10MHz | 38MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-4R7JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Bulk | Active | Multilayer | Ferrite | 4.7 µH | ±5% | 15 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 35MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-R22K220NH FER MULTIL SHLD INDUCTOR Central Technologies |
1,790 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 250 mA | - | Shielded | 500mOhm Max | 20 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-2R2JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
1,485 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Bulk | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 30 mA | - | Shielded | 650mOhm Max | 45 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-1R8JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
1,025 |
|
数据手册 |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±5% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|

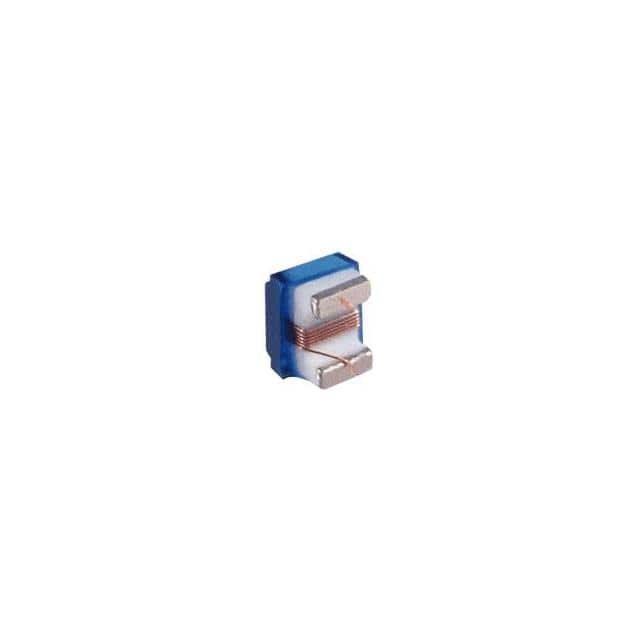

CT0805HQF-51NJSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,015 |
|
数据手册 |
ct0805hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 51 nH | ±5% | - | - | - | 120mOhm | - | 1.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805HQF-16NJSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
ct0805hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 16 nH | ±5% | - | - | - | 60mOhm | - | 2.95GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805HQF-5N6JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
ct0805hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.6 nH | ±5% | - | - | - | 35mOhm | - | 6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

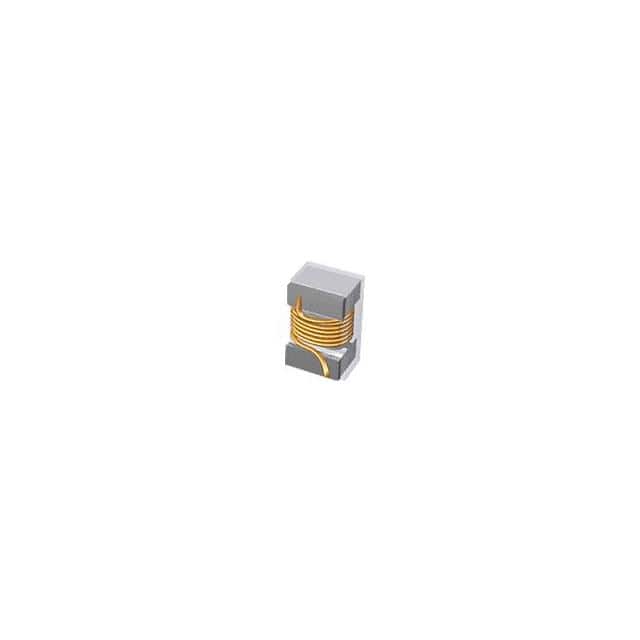

CT1008LSF-222JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
36,000 |
|
数据手册 |
ct1008lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | - | - | - | 1.1Ohm | - | 150MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
