固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTS4F-154K1500UH AXIAL SHELDED INDUCTR Central Technologies |
395 |
|
数据手册 |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 150 mH | ±10% | 15 mA | 3mA | Shielded | 560Ohm Max | 30 @ 25kHz | 180kHz | - | -55°C ~ 125°C | 25 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-2R2J2.2UH XIALSHIELDED INDUCTOR Central Technologies |
144 |
|
数据手册 |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±5% | 1.29 A | 1.29A | Shielded | 140mOhm Max | 42 @ 7.9MHz | 108MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTHR3F-100K10UH FILTER INDUCTOR Central Technologies |
598 |
|
数据手册 |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 9 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 1.125" (28.58mm) |
|
|
CTHR3F-101K100UH FILTER INDUCTOR Central Technologies |
504 |
|
数据手册 |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 5.2 A | 6A | Unshielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 1.125" (28.58mm) |
|
|
CTHR10F-101K100UH FILTER INDUCTOR Central Technologies |
490 |
|
数据手册 |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.935" Dia (23.75mm) | 1.625" (41.28mm) |
|
|
CTHR5F-100K10UH FILTER INDUCTOR Central Technologies |
759 |
|
数据手册 |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 12 A | 19A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 1.125" (28.58mm) |
|

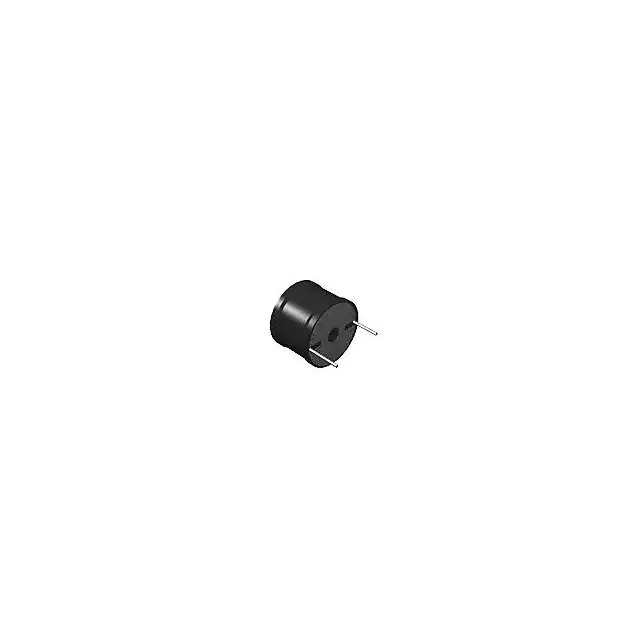

CTDR2F-471K470UH RADIAL DRUM CORE INDUCTOR Central Technologies |
515 |
|
数据手册 |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 1.6 A | - | Unshielded | 355mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
CTDR3F-121K120UH RADIAL DRUM CORE INDUCTOR Central Technologies |
575 |
|
数据手册 |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 120 µH | ±10% | - | 7.2A | Unshielded | 46mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
CTTF0402F-12NJFIXED IND 12NH5% SMD Central Technologies |
40,000 |
|
数据手册 |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 12 nH | ±5% | 180 mA | - | Unshielded | 1.6Ohm Max | 13 @ 500MHz | 3.7GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-1N2BFIXED IND 1.2NH0.1NH SMD Central Technologies |
20,000 |
|
数据手册 |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
