固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTC2F-3R3JAXL LEADED CONF COATED INDUCTOR Central Technologies |
4,865 |
|
数据手册 |
ctc2f | - | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±5% | - | - | - | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTH7F-221K220UH AXIAL PWR LINE INDUCTOR Central Technologies |
4,185 |
|
数据手册 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 220 µH | ±10% | 510 mA | 860mA | Unshielded | 430mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-472K4700UH AXIAL PWR LINE INDUCTOR Central Technologies |
2,004 |
|
数据手册 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 4.7 mH | ±10% | 100 mA | 180mA | Unshielded | 9.7Ohm Max | - | 500kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-560K56UH AXIAL PWR LINE INDUCTOR Central Technologies |
3,602 |
|
数据手册 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 56 µH | ±10% | 800 mA | 1.7A | Unshielded | 130mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-150K15UH AXIAL PWR LINE INDUCTOR Central Technologies |
3,175 |
|
数据手册 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 15 µH | ±10% | 1.3 A | 3.3A | Unshielded | 40mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-153K15000UH AXIAL PWR LINE INDUCTOR Central Technologies |
1,524 |
|
数据手册 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 15 mH | ±10% | 40 mA | 100mA | Unshielded | 43Ohm Max | - | 230kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
CTDR1F-331K330UH RADIAL DRUM CORE INDUCTOR Central Technologies |
4,346 |
|
数据手册 |
CTDR1F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 330 µH | ±10% | - | 1.3A | Unshielded | 336mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.669" Dia (17.00mm) | 0.866" (22.00mm) |
|
CTSPT30LF-522M5.2UH SMT STD TOROIDAL INDUCTOR Central Technologies |
1,997 |
|
数据手册 |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 5.2 µH | ±20% | 4.8 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.378" (9.60mm) |
|

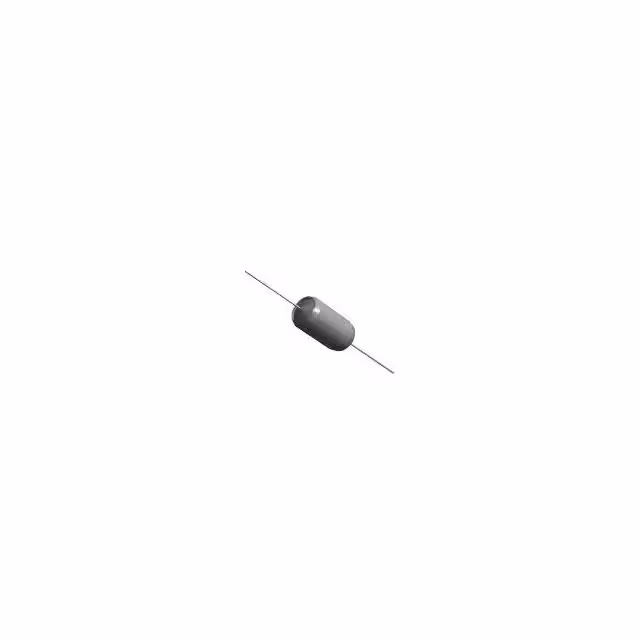

CTS6F-251KIND AXIAL SHIELDED 250UH Central Technologies |
1,521 |
|
数据手册 |
CTS6F | Axial | Bulk | Active | Molded | - | 250 µH | ±10% | 1.33 A | 60mA | Shielded | 170mOhm Max | - | - | - | -20°C ~ 80°C | 1 kHz | - | Through Hole | Axial | 0.250" Dia x 0.531" L (6.36mm x 13.50mm) | - |
|

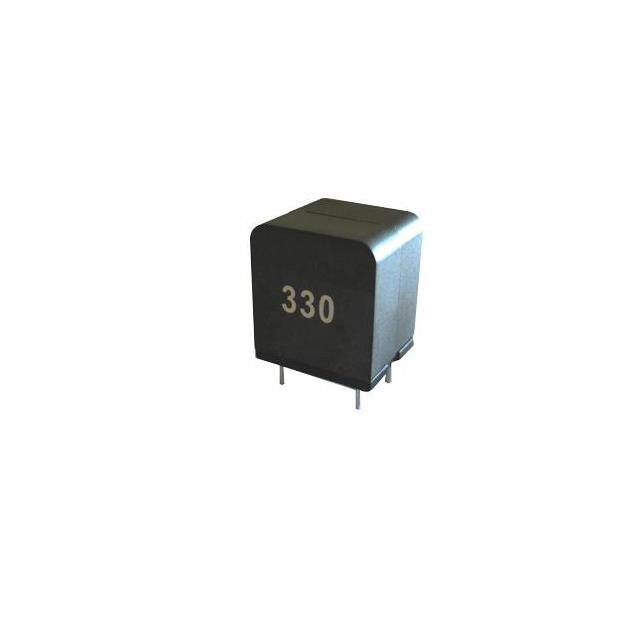

CTDAT1715F-330MSMD SHLD PWR INDUCTOR FOR DIG AM Central Technologies |
1,970 |
|
数据手册 |
CTDAT1715F | Vertical, 4 PC Pin | Bulk | Active | - | - | 33 µH | ±20% | 8.2 A | 8A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
