固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTP29153R3ML01INDUCTANCE 3.3 H TOL 20% Coilmx |
320 |
|
数据手册 |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 30 A | 60A | Unshielded | 2.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP29156R8ML01INDUCTANCE 27 H TOL 20% Coilmx |
320 |
|
数据手册 |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 30 A | 40A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP29152R2ML01INDUCTANCE 2.2 H TOL 20% Coilmx |
320 |
|
数据手册 |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 30 A | 60A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
MS06304R7MS001INDUCTANCE 4.7 H TOL 20% Coilmx |
1,000 |
|
数据手册 |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5 A | 6.5A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.281" L x 0.260" W (7.15mm x 6.60mm) | 0.118" (3.00mm) |
|

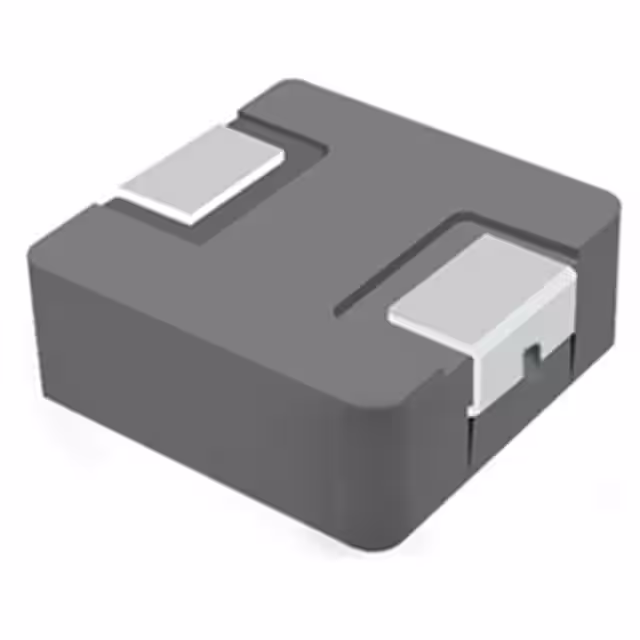

MS06303R3MS001INDUCTANCE 3.3 H TOL 20% Coilmx |
1,000 |
|
数据手册 |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 6.5 A | 9.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.281" L x 0.260" W (7.15mm x 6.60mm) | 0.118" (3.00mm) |
