固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
36401E8N2AFIXED IND 8.2NH 220MA 1.25OHM SM TE Connectivity Passive Product |
4,371 |
|
数据手册 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 8.2 nH | ±0.2nH | 220 mA | - | Unshielded | 1.25Ohm Max | 13 @ 500MHz | 5.5GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
5-1624109-2FIXED IND 15NH 300MA 1.35OHM SMD TE Connectivity Passive Product |
4,567 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 15 nH | ±2% | 300 mA | - | Unshielded | 1.35Ohm Max | 15 @ 500MHz | 3GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1624109-5FIXED IND 1.5NH 800MA 350MOHM SM TE Connectivity Passive Product |
4,724 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.5 nH | ±0.2nH | 800 mA | - | Unshielded | 350mOhm Max | 15 @ 500MHz | 10GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
5-1624109-5FIXED IND 22NH 250MA 1.95OHM SMD TE Connectivity Passive Product |
4,921 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 22 nH | ±2% | 250 mA | - | Unshielded | 1.95Ohm Max | 15 @ 500MHz | 2GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1624109-9FIXED IND 33NH 250MA 2.75OHM SMD TE Connectivity Passive Product |
1,432 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 33 nH | ±2% | 250 mA | - | Unshielded | 2.75Ohm Max | 15 @ 500MHz | 1.5GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1-1624109-7FIXED IND 6.8NH 300MA 750MOHM SM TE Connectivity Passive Product |
3,397 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 6.8 nH | ±0.2nH | 300 mA | - | Unshielded | 750mOhm Max | 15 @ 500MHz | 5GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

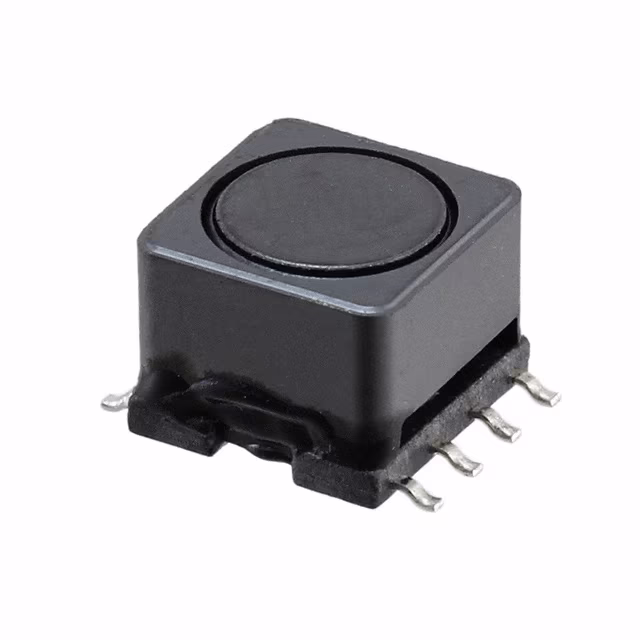

3632B102LLFIXED IND 1MH 300MA 2.5 OHM SMD TE Connectivity Passive Product |
3,691 |
|
数据手册 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1 mH | ±15% | 300 mA | - | Shielded | 2.5Ohm Max | 85 @ 252kHz | 1.8MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
|
3632B103LLFIXED IND 10MH 95MA 26 OHM SMD TE Connectivity Passive Product |
3,264 |
|
数据手册 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 mH | ±15% | 95 mA | - | Shielded | 26Ohm Max | 110 @ 79.6MHz | 500kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
|
3632B153LLFIXED IND 15MH 75MA 40 OHM SMD TE Connectivity Passive Product |
4,247 |
|
数据手册 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 15 mH | ±15% | 75 mA | - | Shielded | 40Ohm Max | 130 @ 79.6kHz | 400kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
3630F330MTFIXED IND 33UH 2.5A 100 MOHM SMD TE Connectivity Passive Product |
2,444 |
|
数据手册 |
3630, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 5A | Shielded | 100mOhm Max | 44 @ 2.52MHz | 10MHz | - | -25°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
