固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1624109-7FIXED IND 6.8NH 300MA 750MOHM SM TE Connectivity Passive Product |
1,580 |
|
数据手册 |
3640, Sigma Inductors | 0603 (1608 Metric) | Bulk | Obsolete | Thin Film | - | 6.8 nH | ±1% | 300 mA | - | Unshielded | 750mOhm Max | 15 @ 500MHz | 5GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
.jpg)
|
36401E1N0ATDFFIXED IND 1NH 700MA 150MOHM SMD TE Connectivity Passive Product |
1,564 |
|
数据手册 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 13 @ 500MHz | 12GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N6ATDFFIXED IND 3.6NH 380MA 550MOHM SM TE Connectivity Passive Product |
3,500 |
|
数据手册 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.6 nH | ±0.2nH | 380 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
.jpg)
|

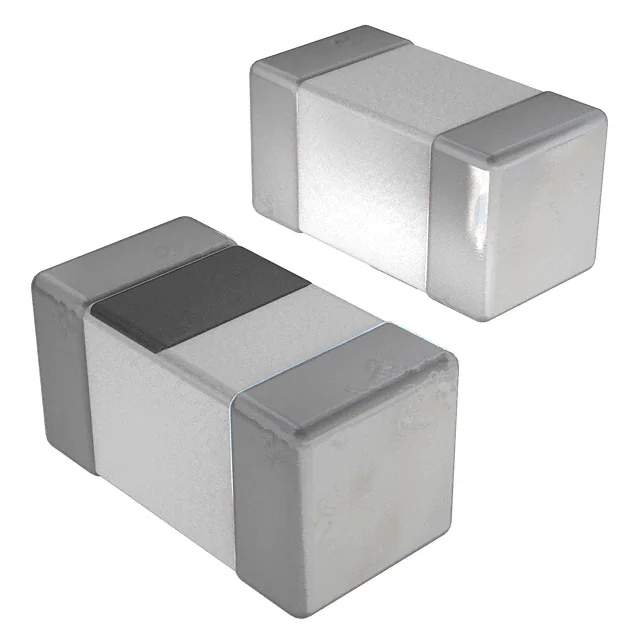

2176075-5FIXED IND 0.5NH 350MA 250MOHM SM TE Connectivity Passive Product |
3,744 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.5 nH | ±0.2nH | 350 mA | - | Unshielded | 250mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-0FIXED IND 1NH 300MA 300 MOHM SMD TE Connectivity Passive Product |
3,768 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1 nH | ±0.2nH | 300 mA | - | Unshielded | 300mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-9FIXED IND 1.9NH 200MA 550MOHM SM TE Connectivity Passive Product |
2,609 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.9 nH | ±0.2nH | 200 mA | - | Unshielded | 550mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-1FIXED IND 1.1NH 300MA 350MOHM SM TE Connectivity Passive Product |
4,742 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.1 nH | ±0.2nH | 300 mA | - | Unshielded | 350mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-3FIXED IND 1.3NH 250MA 450MOHM SM TE Connectivity Passive Product |
2,883 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.3 nH | ±0.2nH | 250 mA | - | Unshielded | 450mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-5FIXED IND 1.5NH 250MA 450MOHM SM TE Connectivity Passive Product |
3,188 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.2nH | 250 mA | - | Unshielded | 450mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
1-2176075-7FIXED IND 1.7NH 200MA 550MOHM SM TE Connectivity Passive Product |
2,293 |
|
数据手册 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.7 nH | ±0.2nH | 200 mA | - | Unshielded | 550mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
