固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36501J7N5JTDGFIXED IND 7.5NH 700MA 110MOHM SM TE Connectivity Passive Product |
2,300 |
|
数据手册 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502CR47JTDGFIXED IND 470NH 470MA 1.19OHM SM TE Connectivity Passive Product |
2,293 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 470 nH | ±5% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

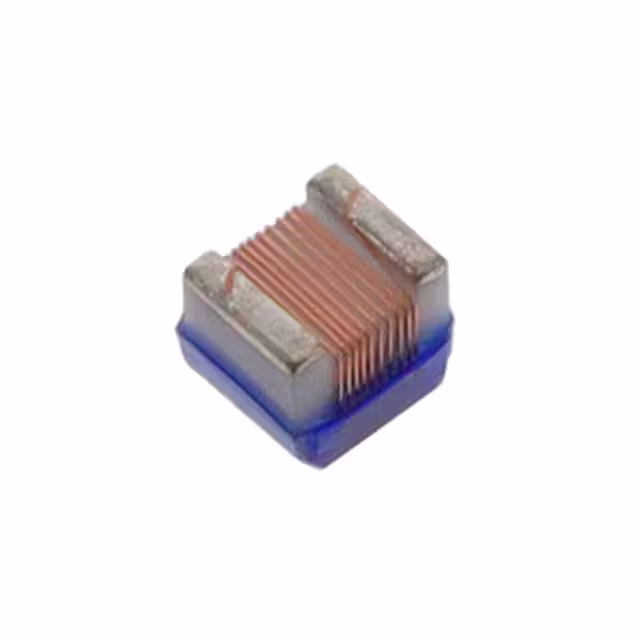

36502CR18JTDGFIXED IND 180NH 620MA 770MOHM SM TE Connectivity Passive Product |
2,282 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±5% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502CR68JTDGFIXED IND 680NH 400MA 1.47OHM SM TE Connectivity Passive Product |
1,979 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 680 nH | ±5% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502AR39JTDGFIXED IND 390NH 290MA 1.5OHM SMD TE Connectivity Passive Product |
1,898 |
|
数据手册 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | 290 mA | - | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 560MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502CR39JTDGFIXED IND 390NH 470MA 1.12OHM SM TE Connectivity Passive Product |
1,810 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502C47NJTDGFIXED IND 47NH 1A 160 MOHM SMD TE Connectivity Passive Product |
1,805 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J3N6JTDGFIXED IND 3.6NH 700MA 63MOHM SMD TE Connectivity Passive Product |
1,799 |
|
数据手册 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.6 nH | ±5% | 700 mA | - | Unshielded | 63mOhm Max | 22 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A12NJTDGFIXED IND 12NH 600MA 150MOHM SMD TE Connectivity Passive Product |
1,617 |
|
数据手册 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

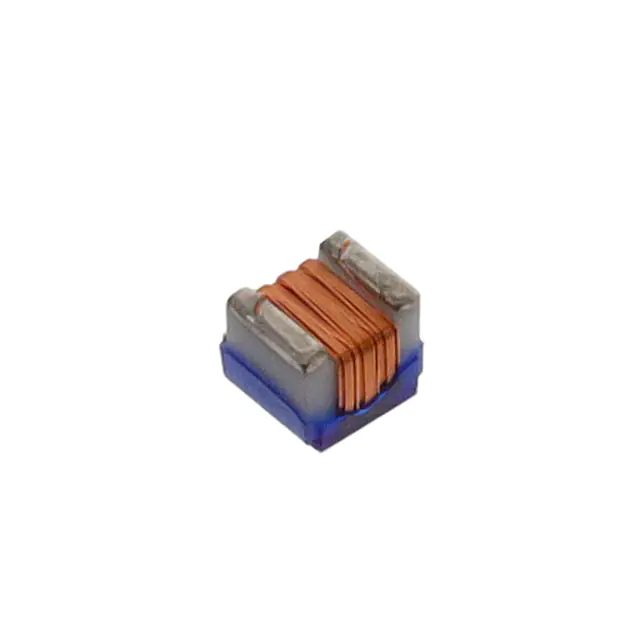

36502C2R2JTDGFIXED IND 2.2UH 280MA 2.8OHM SMD TE Connectivity Passive Product |
1,538 |
|
数据手册 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 µH | ±5% | 280 mA | - | Unshielded | 2.8Ohm Max | 28 @ 50MHz | 160MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
