固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744774112FIXED IND 12UH 2A 110 MOHM SMD Würth Elektronik |
3,436 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2 A | 1.94A | Unshielded | 110mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

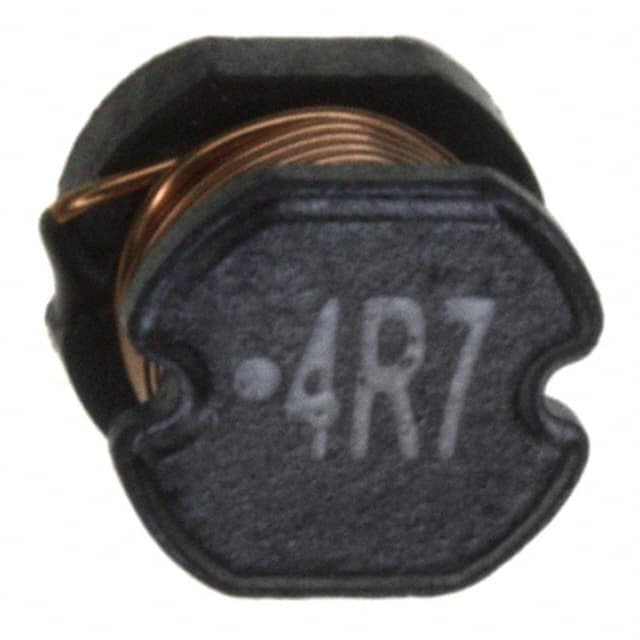

744774047FIXED IND 4.7UH 3A 71 MOHM SMD Würth Elektronik |
3,404 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 5.5A | Unshielded | 71mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

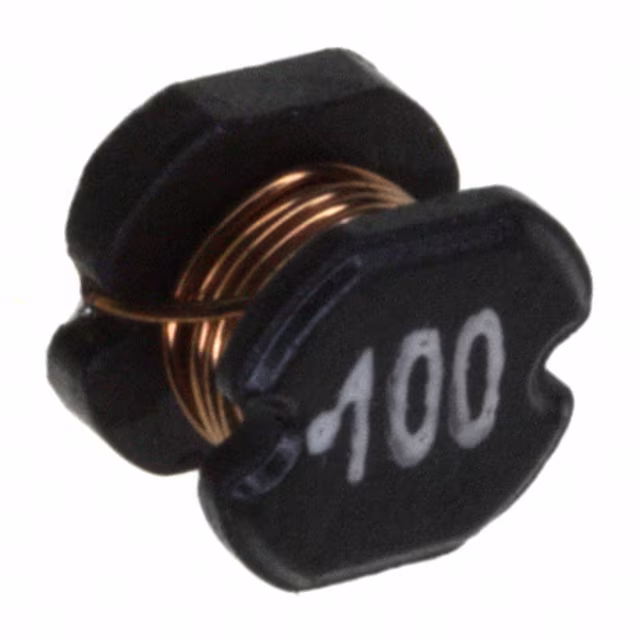

74477410FIXED IND 10UH 2.2A 100 MOHM SMD Würth Elektronik |
3,089 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.2 A | 2.5A | Unshielded | 100mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

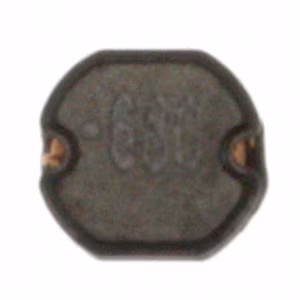

744774168FIXED IND 68UH 640MA 460MOHM SMD Würth Elektronik |
2,229 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 640 mA | 860mA | Unshielded | 460mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774022FIXED IND 2.2UH 4.6A 41 MOHM SMD Würth Elektronik |
1,841 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.6 A | 8.2A | Unshielded | 41mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

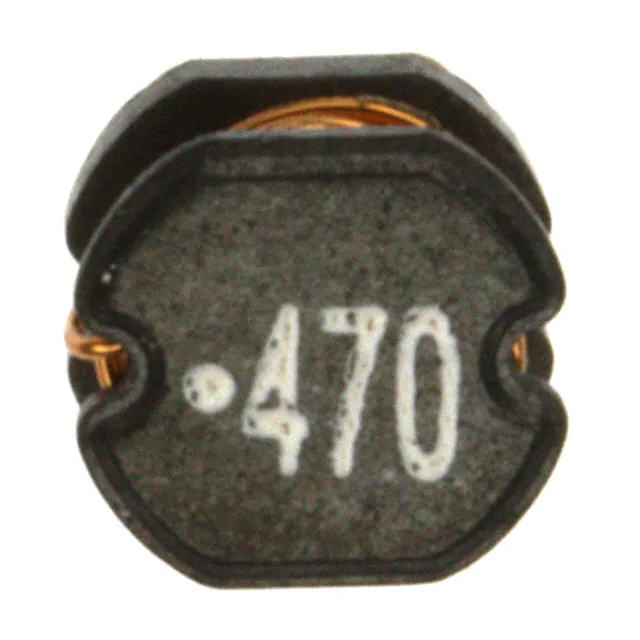

744774147FIXED IND 47UH 860MA 370MOHM SMD Würth Elektronik |
1,811 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 860 mA | 1A | Unshielded | 370mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

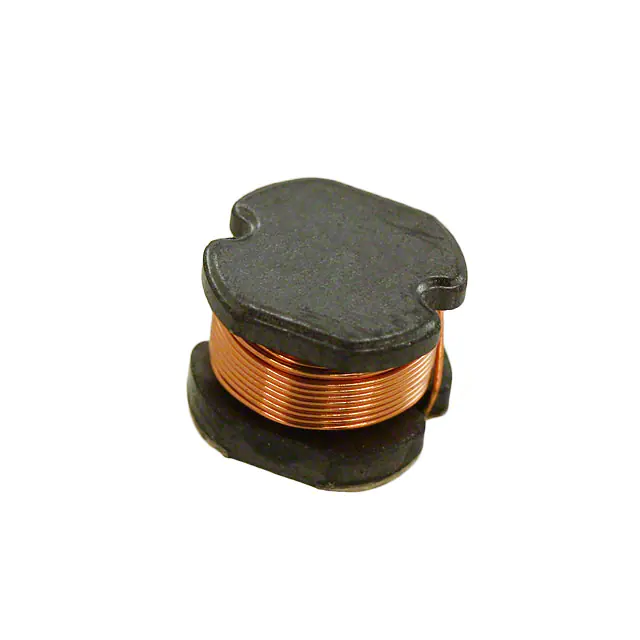

744774222FIXED IND 220UH 420MA 1.57OHM SM Würth Elektronik |
1,800 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 420 mA | 470mA | Unshielded | 1.57Ohm Max | - | 5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
7447745033FIXED IND 3.3UH 3A 49 MOHM SMD Würth Elektronik |
1,681 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | 3A | Unshielded | 49mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|

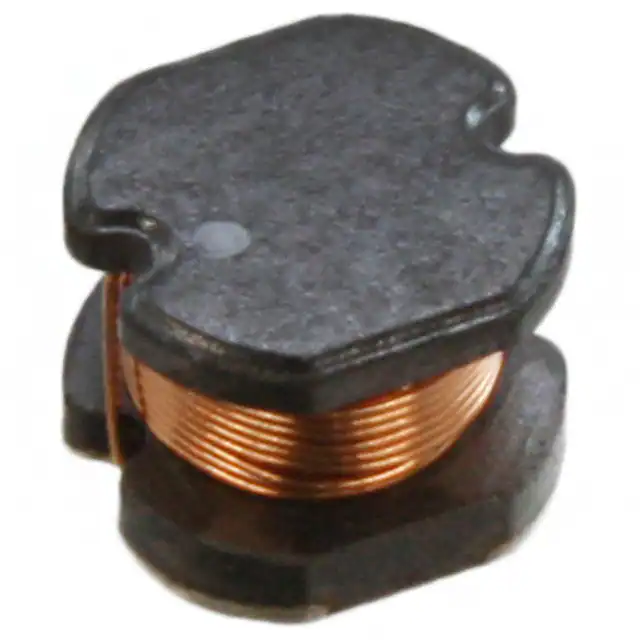

744774115FIXED IND 15UH 1.53A 140MOHM SMD Würth Elektronik |
1,399 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.53 A | 1.9A | Unshielded | 140mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

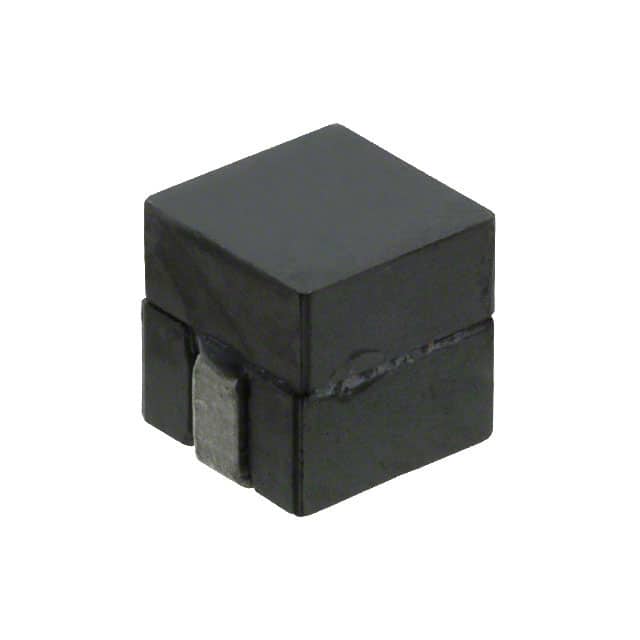

744307022FIXED IND 220NH 26A 0.00029OHM Würth Elektronik |
4,557 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 26 A | 29.9A | Shielded | 0.29mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7070 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.295" (7.50mm) |
