固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

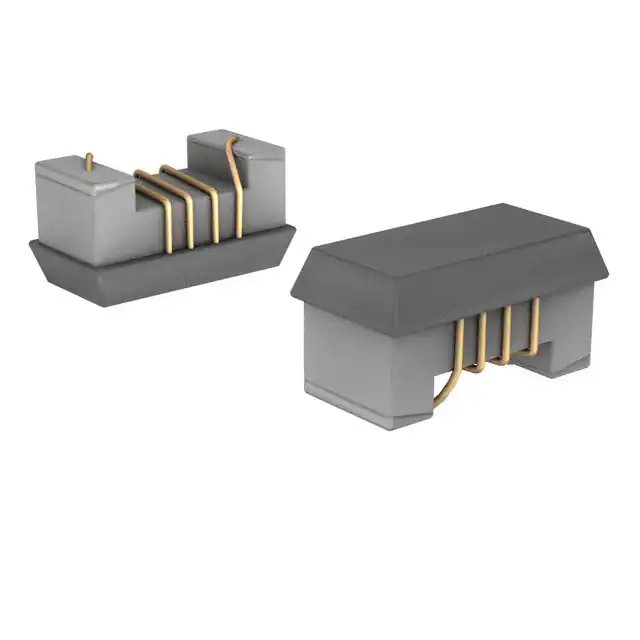

744916125FIXED IND 25NH 700MA 300MOHM SMD Würth Elektronik |
1,954 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 25 nH | ±2% | 700 mA | - | Unshielded | 300mOhm Max | 26 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916126FIXED IND 26NH 700MA 275MOHM SMD Würth Elektronik |
2,503 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 26 nH | ±2% | 700 mA | - | Unshielded | 275mOhm Max | 27 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916127FIXED IND 27NH 450MA 330MOHM SMD Würth Elektronik |
1,653 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 450 mA | - | Unshielded | 330mOhm Max | 27 @ 250MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916130FIXED IND 30NH 450MA 400MOHM SMD Würth Elektronik |
3,758 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±2% | 450 mA | - | Unshielded | 400mOhm Max | 25 @ 250MHz | 2.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916136FIXED IND 36NH 480MA 360MOHM SMD Würth Elektronik |
4,832 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 480 mA | - | Unshielded | 360mOhm Max | 26 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916137FIXED IND 37NH 470MA 480MOHM SMD Würth Elektronik |
3,884 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 37 nH | ±2% | 470 mA | - | Unshielded | 480mOhm Max | 26 @ 250MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916139FIXED IND 39NH SMD Würth Elektronik |
3,928 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | - | - | Unshielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916140FIXED IND 40NH 450MA 520MOHM SMD Würth Elektronik |
2,986 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 28 @ 250MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916143FIXED IND 43NH 450MA 520MOHM SMD Würth Elektronik |
2,146 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 26 @ 250MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916151FIXED IND 51NH 360MA 700MOHM SMD Würth Elektronik |
4,774 |
|
数据手册 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±2% | 360 mA | - | Unshielded | 700mOhm Max | 26 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
