固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744761036AFIXED IND 3.6NH 700MA 60MOHM SMD Würth Elektronik |
4,148 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.6 nH | ±0.2nH | 700 mA | - | Unshielded | 60mOhm Max | 22 @ 250MHz | 5.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
744760262CFIXED IND 620NH 400MA 2.7OHM SMD Würth Elektronik |
1,329 |
|
数据手册 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±5% | 400 mA | - | Unshielded | 2.7Ohm Max | 23 @ 50MHz | 188MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
.jpg)
|

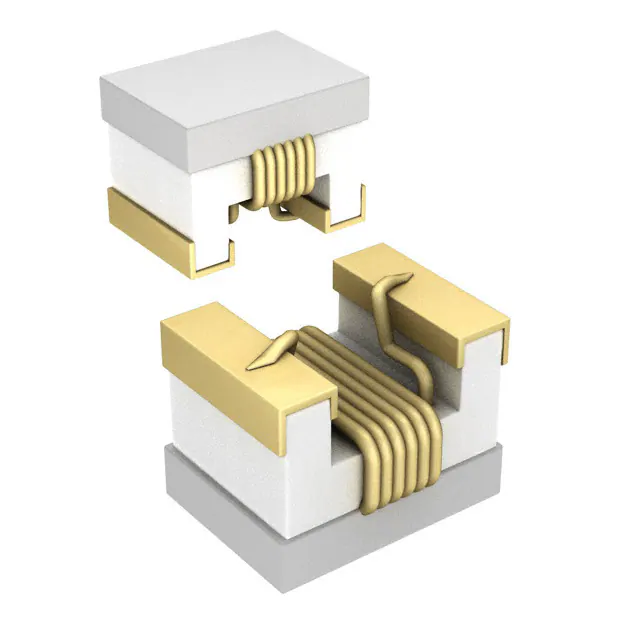

744760268AFIXED IND 680NH 400MA 1.2OHM SMD Würth Elektronik |
4,678 |
|
数据手册 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 400 mA | - | Unshielded | 1.2Ohm Max | 35 @ 100MHz | 188MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
.jpg)
|
74479887210FIXED IND 1UH 1A 290 MOHM SMD Würth Elektronik |
3,258 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1 A | 1.2A | Shielded | 290mOhm | 15 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74479887268FIXED IND 6.8UH 700MA 650MOHM SM Würth Elektronik |
4,726 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 6.8 µH | ±20% | 700 mA | 600mA | Shielded | 650mOhm | 30 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74479887310FIXED IND 10UH 500MA 700MOHM SMD Würth Elektronik |
4,856 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 10 µH | ±20% | 500 mA | 350mA | Shielded | 700mOhm | 35 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
744765122GAFIXED IND 22NH 400MA 300MOHM SMD Würth Elektronik |
4,320 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765139GAFIXED IND 39NH 320MA 550MOHM SMD Würth Elektronik |
3,568 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 320 mA | - | Unshielded | 550mOhm Max | 25 @ 250MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765130GAFIXED IND 30NH 400MA 300MOHM SMD Würth Elektronik |
3,881 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±2% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765191GAFIXED IND 91NH 120MA 2.3 OHM SMD Würth Elektronik |
3,702 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 91 nH | ±2% | 120 mA | - | Unshielded | 2.3Ohm Max | 20 @ 150MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
