固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

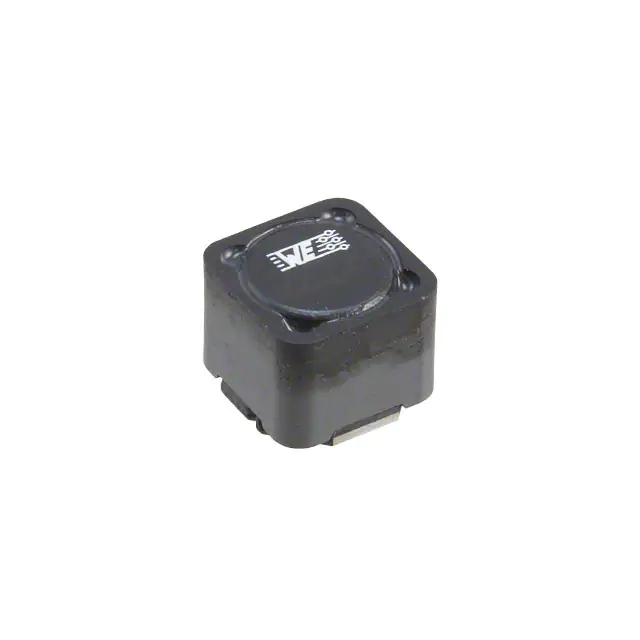

7687709102FIXED IND 1MH 720MA 1.4 OHM SMD Würth Elektronik |
4,058 |
|
数据手册 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 720 mA | 900mA | Shielded | 1.4Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
784325055WE-HCIA SMT FLAT WIRE HIGH CURRE Würth Elektronik |
2,331 |
|
数据手册 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.2 µH | ±20% | 10 A | 14.3A | Shielded | 9.45mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
74439369150WE-XHMI SMT POWER INDUCTOR 15 UH Würth Elektronik |
4,186 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 8.3 A | 16.95A | Shielded | 14.8mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
7447019WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
2,337 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 700 µH | ±20% | 5.1 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.496" Dia x 0.677" W (38.00mm x 17.20mm) | - |
|
78439370068WE-XHMA SMT POWER INDUCTOR 1510; Würth Elektronik |
4,749 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 15 A | 40.05A | Shielded | 4.1mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
7443630700FIXED IND 7UH 21A 5.61 MOHM SMD Würth Elektronik |
4,376 |
|
数据手册 |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 7 µH | ±15% | 21 A | 30A | Shielded | 5.61mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
74437429203680FIXED IND 68UH 11.2A 22.2MOHM SM Würth Elektronik |
2,232 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 11.2 A | 10.7A | Shielded | 22.2mOhm | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203151FIXED IND 150UH 9.2A 30.6MOHM SM Würth Elektronik |
1,526 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 µH | ±20% | 9.2 A | 7.2A | Shielded | 30.6mOhm | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|

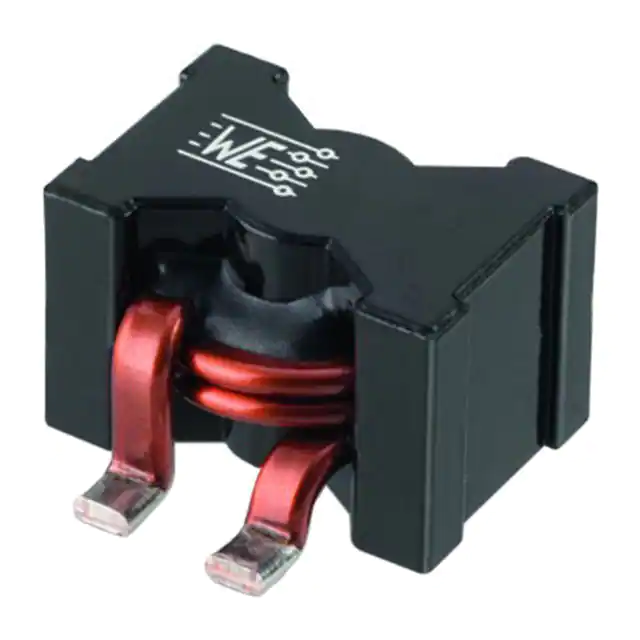

7443640100BFIXED IND 1UH 56A 0.484 MOHM SMD Würth Elektronik |
3,155 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1 µH | ±20% | 56 A | 125A | Shielded | 0.484mOhm Max | - | 53.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|

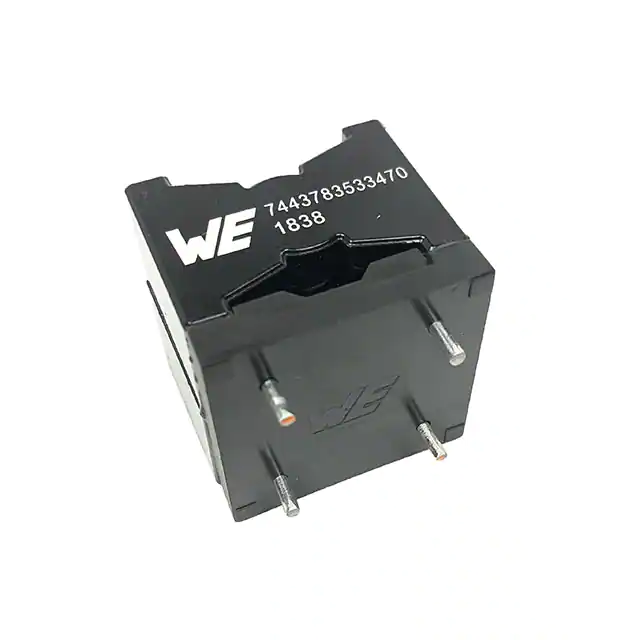

7443783533470FIXED IND 47UH 19.3A 12.98 MOHM Würth Elektronik |
1,069 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 19.3 A | 32.3A | Shielded | 12.98mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
