固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447035WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
2,330 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 15 µH | ±20% | 4.5 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.531" Dia (13.50mm) | 0.264" (6.70mm) |
|
|
7447045WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
4,040 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 8.2 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.472" Dia (12.00mm) | 0.217" (5.50mm) |
|
|
7447011WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
4,865 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 130 µH | ±20% | 2.6 A | - | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.728" Dia x 0.421" W (18.50mm x 10.70mm) | 0.421" (10.70mm) |
|
|
7447027WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
4,315 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.728" Dia x 0.354" W (18.50mm x 9.00mm) | 0.354" (9.00mm) |
|
|
7447052WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
2,278 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 32 µH | ±20% | 2.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.394" Dia (10.00mm) | 0.260" (6.60mm) |
|
|
7447471027WE-TIS SHIELDED RADIAL LEADED WI Würth Elektronik |
1,158 |
|
数据手册 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.7 µH | ±20% | 8.2 A | 13A | Shielded | 11mOhm Max | - | 88MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|

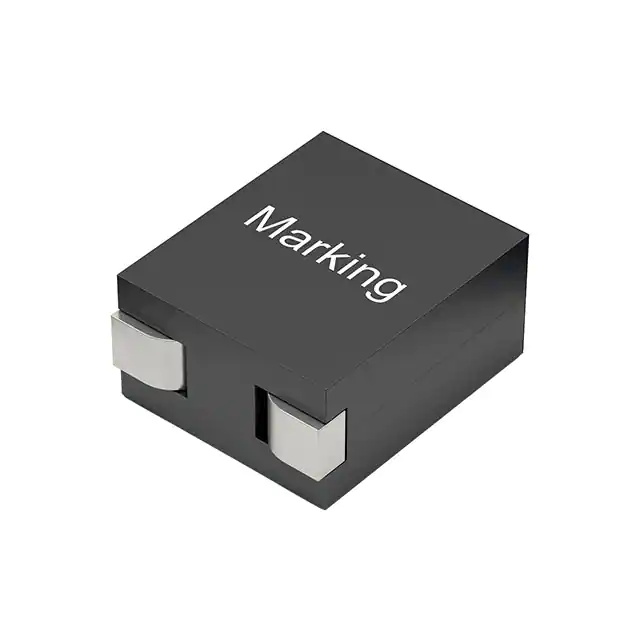

74431012015FIXED IND 150NH 37A 0.000125OHM Würth Elektronik |
2,116 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 nH | ±15% | 37 A | 108.4A | Shielded | 0.125mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1012 | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7843340100FIXED IND 1UH 12.8A 5.9MOHM SMD Würth Elektronik |
3,274 |
|
数据手册 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 12.8 A | 21.3A | Shielded | 5.9mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
7443091062FIXED IND 620NH 34A 0.00042OHM Würth Elektronik |
2,758 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 620 nH | ±20% | 34 A | 74A | Shielded | 0.42mOhm | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1411 | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
|
7447065WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
4,319 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±20% | 3.1 A | - | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.024" Dia (26.00mm) | - |
