固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447452102FIXED IND 1MH 600MA 1.55 OHM TH Würth Elektronik |
3,551 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 600 mA | 550mA | Unshielded | 1.55Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
768772222FIXED IND 2.2MH 320MA 4.73OHM TH Würth Elektronik |
1,620 |
|
数据手册 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 320 mA | 320mA | Unshielded | 4.73Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

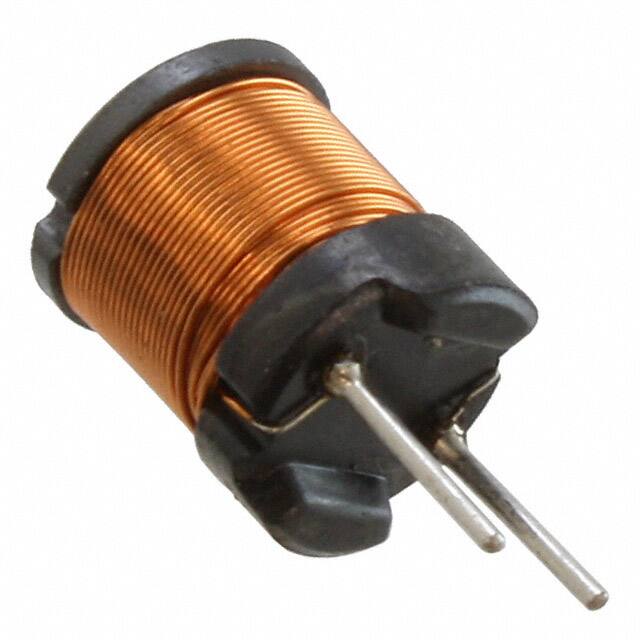

768772182FIXED IND 1.8MH 350MA 3.3 OHM TH Würth Elektronik |
2,549 |
|
数据手册 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 350 mA | 380mA | Unshielded | 3.3Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7447480822FIXED IND 8.2MH 300MA 9 OHM TH Würth Elektronik |
3,375 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±5% | 300 mA | 300mA | Unshielded | 9Ohm Max | - | 440kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
7447480222FIXED IND 2.2MH 480MA 2.5 OHM TH Würth Elektronik |
1,687 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 480 mA | 560mA | Unshielded | 2.5Ohm Max | - | 830kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7447480332FIXED IND 3.3MH 360MA 4 OHM TH Würth Elektronik |
3,747 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 360 mA | 400mA | Unshielded | 4Ohm Max | - | 650kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

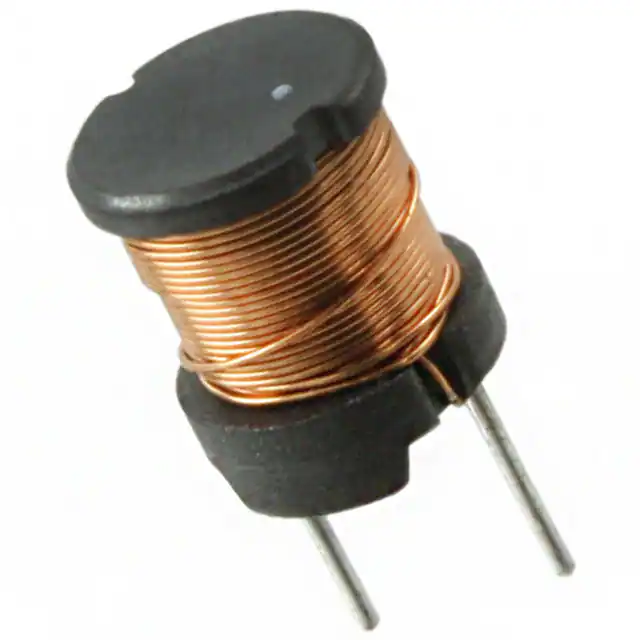

768772821FIXED IND 820UH 500MA 1.92OHM TH Würth Elektronik |
4,217 |
|
数据手册 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 500 mA | 720mA | Unshielded | 1.92Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744031150FIXED IND 15UH 620MA 285MOHM SMD Würth Elektronik |
1,095 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 620 mA | 450mA | Shielded | 285mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
744042330FIXED IND 33UH 730MA 420MOHM SMD Würth Elektronik |
845 |
|
数据手册 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 730 mA | 500mA | Shielded | 420mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744052101FIXED IND 100UH 350MA 1.1OHM SMD Würth Elektronik |
577 |
|
数据手册 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 350 mA | 420mA | Shielded | 1.1Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
