固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720103FIXED IND 10MH 130MA 24 OHM TH Würth Elektronik |
4,088 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 mH | ±5% | 130 mA | 160mA | Unshielded | 24Ohm Max | - | 520kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

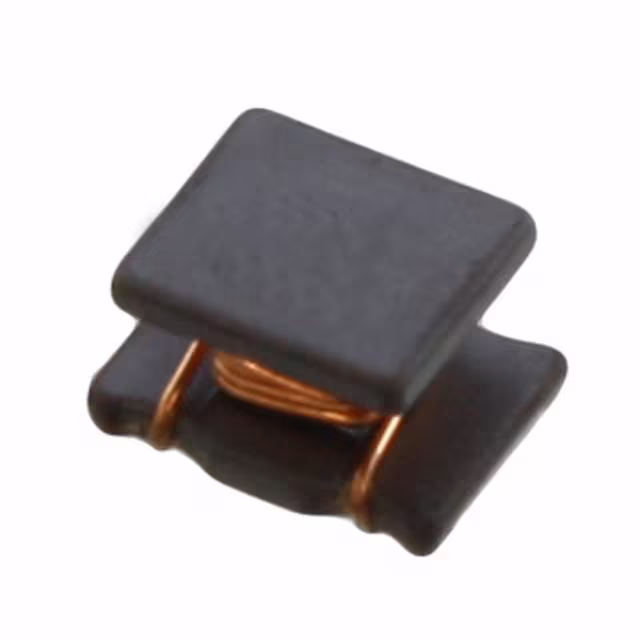

7440450018FIXED IND 1.8UH 1.7A 100MOHM SMD Würth Elektronik |
1,029 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 1.7 A | 3.5A | Unshielded | 100mOhm Max | 45 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045152FIXED IND 1.5MH 55MA 38.5OHM SMD Würth Elektronik |
950 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 55 mA | 95mA | Unshielded | 38.5Ohm Max | 35 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045002FIXED IND 2.2UH 1.6A 110MOHM SMD Würth Elektronik |
770 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.6 A | 2.75A | Unshielded | 110mOhm Max | 40 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045008FIXED IND 8.2UH 1A 250 MOHM SMD Würth Elektronik |
647 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1 A | 1.6A | Unshielded | 250mOhm Max | 36 @ 1MHz | 34MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045681FIXED IND 680UH 90MA 16.8OHM SMD Würth Elektronik |
601 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 90 mA | 200mA | Unshielded | 16.8Ohm Max | 45 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

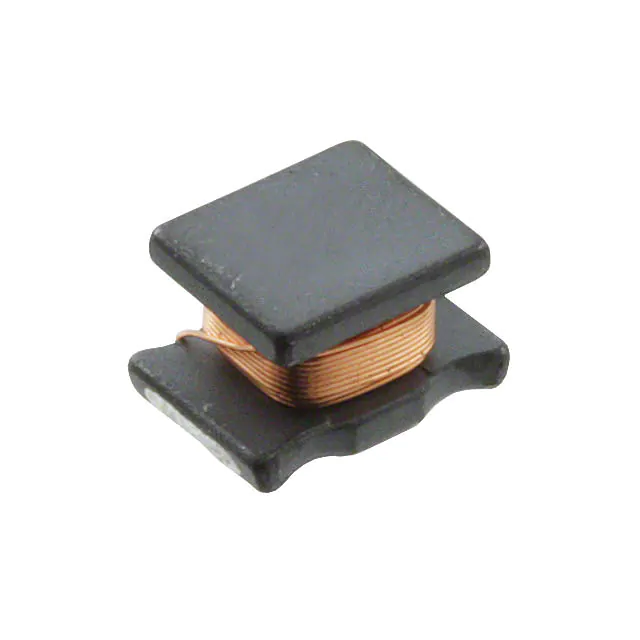

744045821FIXED IND 820UH 85MA 20 OHM SMD Würth Elektronik |
575 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 85 mA | 150mA | Unshielded | 20Ohm Max | 50 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
7440450015FIXED IND 1.5UH 1.75A 90MOHM SMD Würth Elektronik |
312 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.75 A | 4A | Unshielded | 90mOhm Max | 42 @ 1MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
7440450027FIXED IND 2.7UH 1.5A 120MOHM SMD Würth Elektronik |
213 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.5 A | 2.7A | Unshielded | 120mOhm Max | 40 @ 1MHz | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

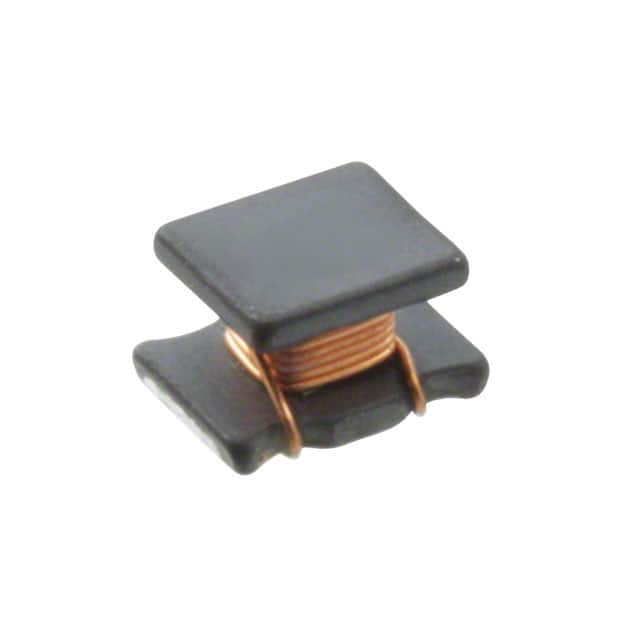

744045003FIXED IND 3.3UH 1.4A 130MOHM SMD Würth Elektronik |
180 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 2.7A | Unshielded | 130mOhm Max | 45 @ 1MHz | 58MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
