固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744765082AFIXED IND 8.2NH 680MA 104MOHM SM Würth Elektronik |
285 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 200MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
744901056FIXED IND 5.6NH 280MA 700MOHM SM Würth Elektronik |
485 |
|
数据手册 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 5.6 nH | ±0.1nH | 280 mA | - | Unshielded | 700mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
.jpg)
|
744760333AFIXED IND 3.3UH 210MA 2.3OHM SMD Würth Elektronik |
904 |
|
数据手册 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 210 mA | - | Unshielded | 2.3Ohm Max | 15 @ 7.96MHz | 70MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760282AFIXED IND 820NH 300MA 1.5OHM SMD Würth Elektronik |
700 |
|
数据手册 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 35 @ 50MHz | 215MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744758318AFIXED IND 1.8UH 630MA 750MOHM SM Würth Elektronik |
676 |
|
数据手册 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 630 mA | - | Unshielded | 750mOhm Max | 20 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762133AFIXED IND 33NH 1A 100 MOHM SMD Würth Elektronik |
510 |
|
数据手册 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

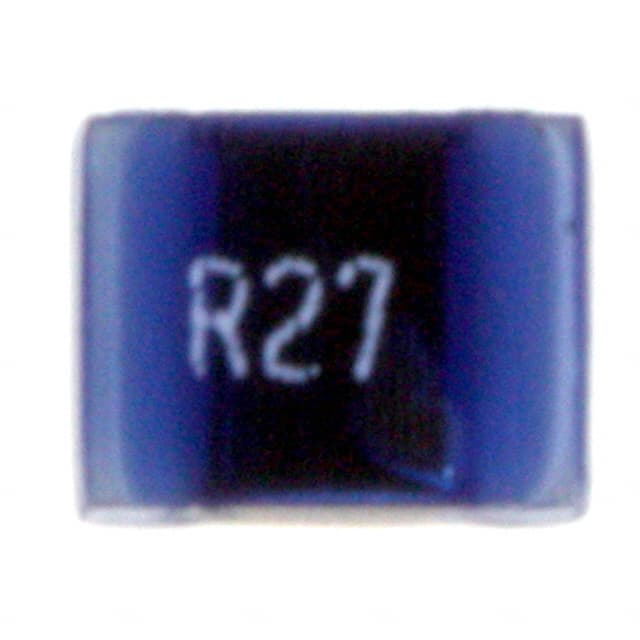

744762227AFIXED IND 270NH 600MA 750MOHM SM Würth Elektronik |
435 |
|
数据手册 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 600 mA | - | Unshielded | 750mOhm Max | 45 @ 100MHz | 650MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744758356AFIXED IND 5.6UH 370MA 1.8OHM SMD Würth Elektronik |
414 |
|
数据手册 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 370 mA | - | Unshielded | 1.8Ohm Max | 20 @ 7.96MHz | 80MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762447AFIXED IND 47UH 45MA 14 OHM SMD Würth Elektronik |
252 |
|
数据手册 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 45 mA | - | Unshielded | 14Ohm Max | 15 @ 2.52MHz | 17MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762082AFIXED IND 8.2NH 1A 60 MOHM SMD Würth Elektronik |
225 |
|
数据手册 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
