固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443739650033FIXED IND 330NH 29.5A 0.0008OHM Würth Elektronik |
500 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 29.5 A | 108.6A | Shielded | 0.8mOhm Max | - | 74.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7843320150FIXED IND 1.5UH 19.7A 3.3MOHM SM Würth Elektronik |
200 |
|
数据手册 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 19.7 A | 28.2A | Shielded | 3.3mOhm Max | - | 74MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
7847229020FIXED IND 1.96UH 15A 2.4MOHM SMD Würth Elektronik |
592 |
|
数据手册 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | 134MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Surface Mount | - | 0.713" L x 0.354" W (18.10mm x 9.00mm) | 0.394" (10.00mm) |
|

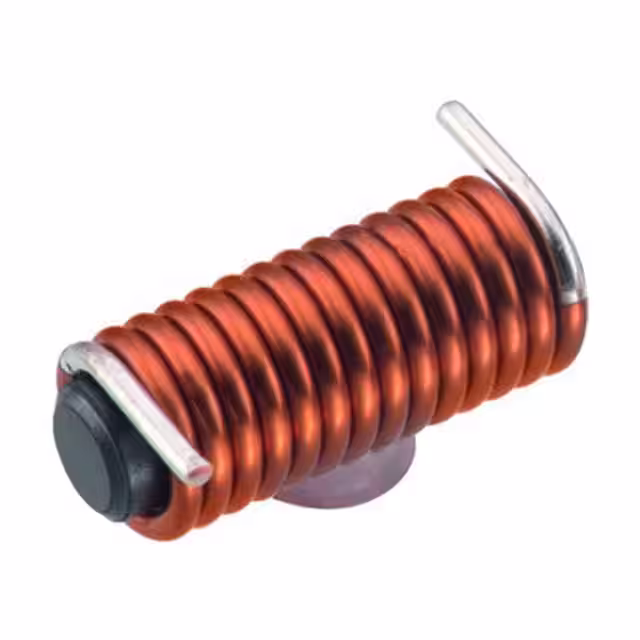

7847227027FIXED IND 2.72UH 10A 6.4MOHM SMD Würth Elektronik |
472 |
|
数据手册 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.72 µH | ±20% | 10 A | 17.5A | Unshielded | 6.4mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.587" L x 0.354" W (14.90mm x 9.00mm) | 0.276" (7.00mm) |
|
784373680100Power Inductor 10 H 20 Würth Elektronik |
800 |
|
数据手册 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 8.6 A | 12.2A | Shielded | 32mOhm Max | - | 11.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680220Power Inductor 22 H 20 Würth Elektronik |
796 |
|
数据手册 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5.7 A | 7.5A | Shielded | 68mOhm Max | - | 7.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373865470Power Inductor 47 H 20 Würth Elektronik |
395 |
|
数据手册 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 5.6 A | 6.5A | Shielded | 85mOhm Max | - | 4.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865047Power Inductor 4.7 H 20 Würth Elektronik |
385 |
|
数据手册 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 16.9 A | 21.35A | Shielded | 8.6mOhm Max | - | 15.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865033Power Inductor 3.3 H 20 Würth Elektronik |
377 |
|
数据手册 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 21 A | 27.1A | Shielded | 5.8mOhm Max | - | 18.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
7843320270FIXED IND 2.7UH 16.2A 4.7MOHM SM Würth Elektronik |
221 |
|
数据手册 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 16.2 A | 21.6A | Shielded | 4.7mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
