固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

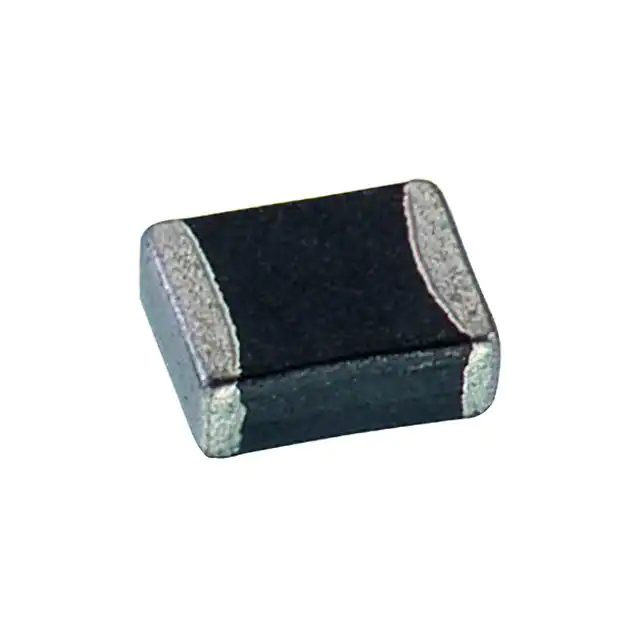

74479889247FIXED IND Würth Elektronik |
2,890 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Bulk | Active | Multilayer | - | 4.7 µH | ±20% | 900 mA | 900mA | Shielded | 500mOhm Max | 15 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74404052010FIXED IND 1UH 3.9A 19.8 MOHM SMD Würth Elektronik |
1,978 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 3.9 A | 6.3A | Shielded | 19.8mOhm | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
74404052560WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
4,928 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 720 mA | 850mA | Shielded | 627mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.181" W (5.00mm x 4.60mm) | 0.079" (2.00mm) |
|
|
74404052075WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
4,919 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.5 µH | ±20% | 1.7 A | 2.1A | Shielded | 96.8mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.181" W (5.00mm x 4.60mm) | 0.079" (2.00mm) |
|
|
74404052150WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
4,609 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.3 A | 1.5A | Shielded | 162mOhm | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.181" W (5.00mm x 4.60mm) | 0.079" (2.00mm) |
.jpg)
|
74479787147BFIXED IND 470NH 2.8A 40 MOHM SMD Würth Elektronik |
3,000 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Bulk | Active | Multilayer | - | 470 nH | ±20% | 2.7 A | 950mA | Shielded | 50mOhm Max | 18 @ 1MHz | 105MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74404084560WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
1,992 |
|
数据手册 |
WE-LQS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 56 µH | ±20% | 1.5 A | 2A | Shielded | 180mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
74479887210AFIXED IND 1UH 1A 290 MOHM SMD Würth Elektronik |
1,105 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1 A | - | Shielded | 290mOhm | 15 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
744732153WE-TI RADIAL LEADED WIRE WOUND I Würth Elektronik |
109 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 15 mH | ±5% | 100 mA | 150mA | Unshielded | 60Ohm Max | - | 450kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.374" Dia (9.50mm) | 0.315" (8.00mm) |
|
|
74408063470WE-HEPC SMT SHIELDED TINY POWER Würth Elektronik |
4,464 |
|
数据手册 |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 800 mA | 1.2A | Shielded | 385mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
