固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744045180FIXED IND 18UH 680MA 600MOHM SMD Würth Elektronik |
7,510 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 680 mA | 1.1A | Unshielded | 600mOhm Max | 42 @ 1MHz | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
.jpg)
|
74479763168FIXED IND 680NH 1A 225 MOHM SMD Würth Elektronik |
7,082 |
|
数据手册 |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 680 nH | ±20% | 1 A | 950mA | Shielded | 225mOhm Max | 10 @ 1MHz | 190MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
744045330FIXED IND 33UH 430MA 1.1 OHM SMD Würth Elektronik |
2,192 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 430 mA | 850mA | Unshielded | 1.1Ohm Max | 55 @ 1MHz | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

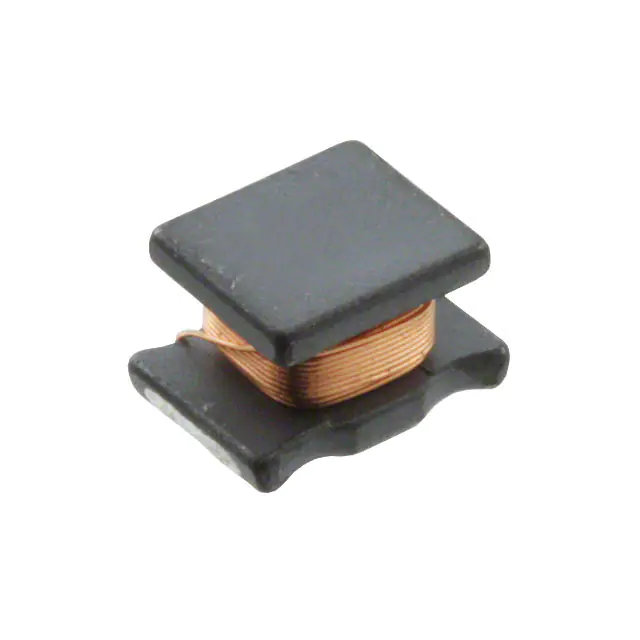

744045210FIXED IND 100UH 270MA 2.5OHM SMD Würth Elektronik |
2,184 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 270 mA | 450mA | Unshielded | 2.5Ohm Max | 60 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045150FIXED IND 15UH 730MA 500MOHM SMD Würth Elektronik |
1,677 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 730 mA | 1.24A | Unshielded | 500mOhm Max | 45 @ 1MHz | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
74479775222AFIXED IND 2.2UH 1A 250 MOHM SMD Würth Elektronik |
1,550 |
|
数据手册 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 1 A | 700mA | Unshielded | 250mOhm Max | 23 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
.jpg)
|
74479774210FIXED IND 1UH 1.1A 190 MOHM SMD Würth Elektronik |
14,381 |
|
数据手册 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.1 A | 500mA | Shielded | 190mOhm | 12 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
74479774222FIXED IND 2.2UH 700MA 340MOHM SM Würth Elektronik |
9,498 |
|
数据手册 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 700 mA | 250mA | Shielded | 340mOhm | 15 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
744910016FIXED IND 1.65NH 1.6A 4 MOHM SMD Würth Elektronik |
1,241 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 1.65 nH | ±10% | 1.6 A | - | Unshielded | 4mOhm Max | 100 @ 800MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|

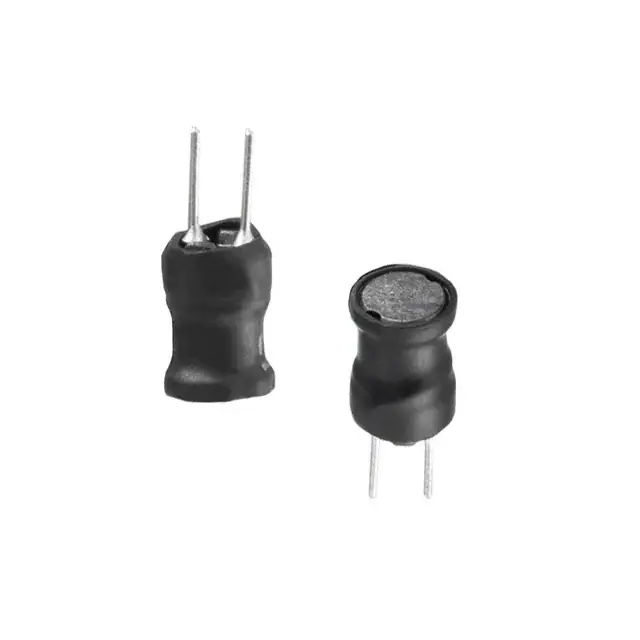

7447462102FIXED IND 1MH 250MA 6 OHM TH Würth Elektronik |
9,938 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 250 mA | 270mA | Unshielded | 6Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
