固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404032047FIXED IND 4.7UH 1.3A 96 MOHM SMD Würth Elektronik |
912 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.2A | Shielded | 96mOhm | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
.jpg)
|

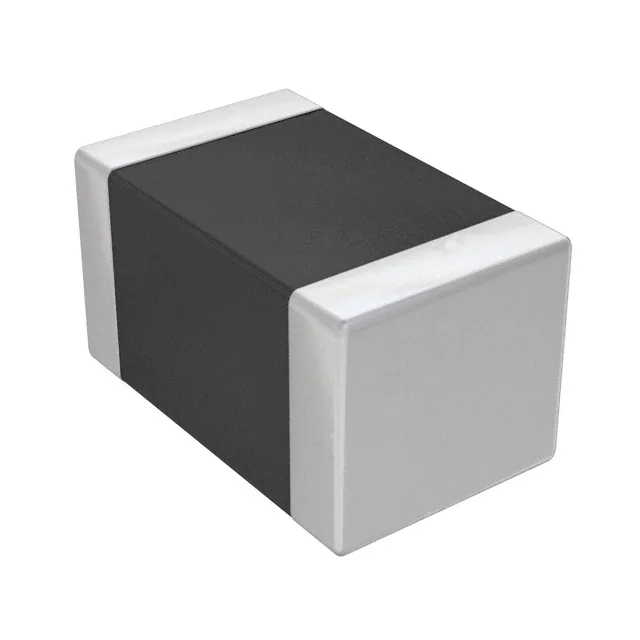

74479777310FIXED IND 10UH 650MA 625MOHM SMD Würth Elektronik |
6,733 |
|
数据手册 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 650 mA | 125mA | Shielded | 625mOhm Max | 35 @ 1MHz | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

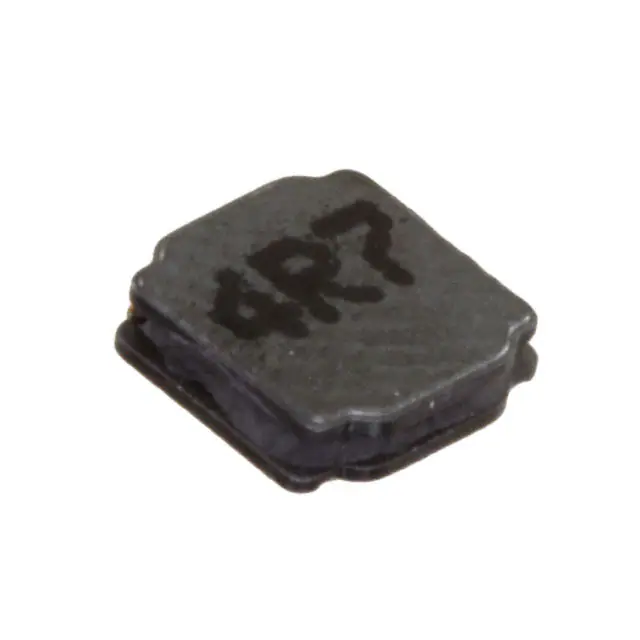

74404041047FIXED IND 4.7UH 1.55A 91MOHM SMD Würth Elektronik |
12,826 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.55 A | 1.3A | Shielded | 91mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.5mm.jpg)
|

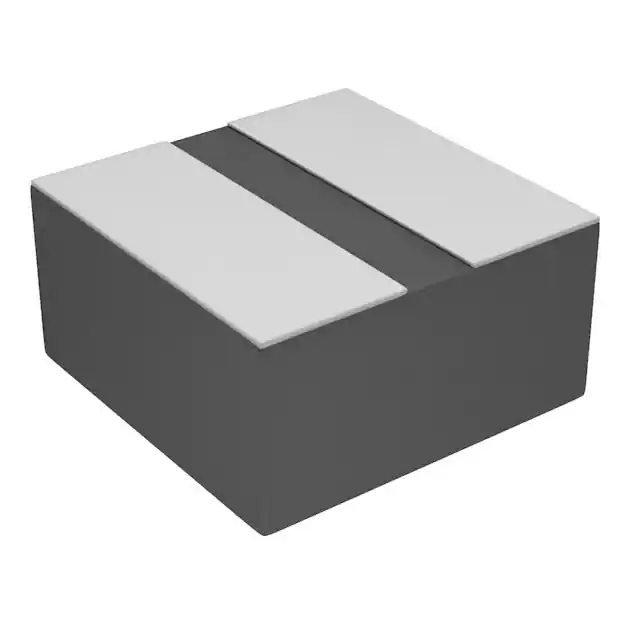

74438335047FIXED IND 4.7UH 1.5A 162MOHM SMD Würth Elektronik |
12,438 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1.5 A | 2.8A | Shielded | 162mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
1mm.jpg)
|

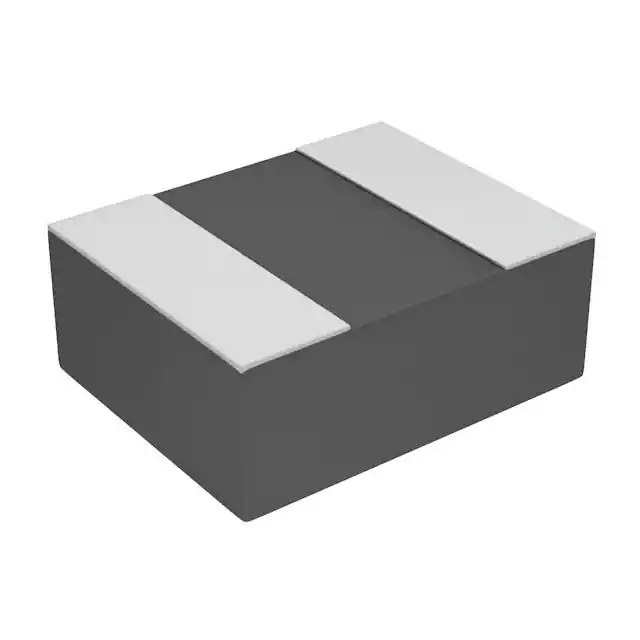

74438323100FIXED IND 10UH 600MA 843MOHM SMD Würth Elektronik |
11,186 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 600 mA | 1.35A | Shielded | 843mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
74404042101FIXED IND 100UH 420MA 1.43OHM SM Würth Elektronik |
9,525 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 420 mA | 560mA | Shielded | 1.43Ohm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
74438323010FIXED IND 1UH 2.5A 75 MOHM SMD Würth Elektronik |
3,816 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.5 A | 4A | Shielded | 75mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

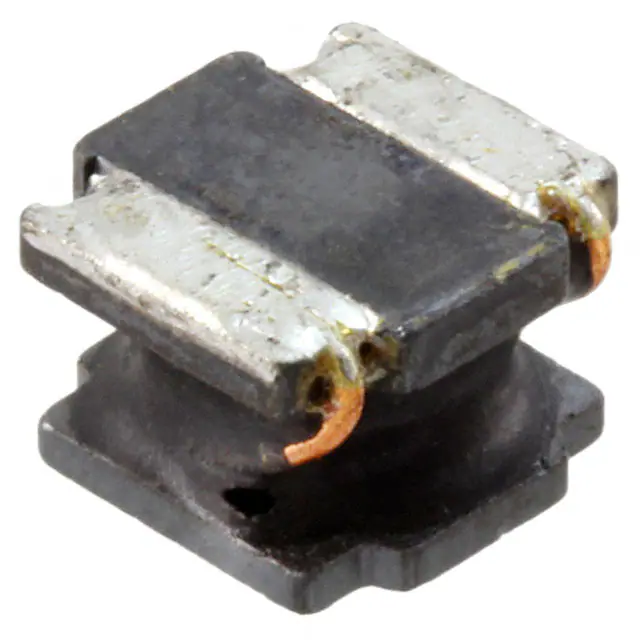

74404064100FIXED IND 10UH 2.45A 48 MOHM SMD Würth Elektronik |
3,716 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.85 A | 3.5A | Shielded | 48mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
74438323033FIXED IND 3.3UH 1.25A 264MOHM SM Würth Elektronik |
1,376 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 1.75 A | 2.7A | Shielded | 264mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
74404086331FIXED IND 330UH 850MA 698MOHM SM Würth Elektronik |
2,702 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 850 mA | 1.12A | Shielded | 698mOhm | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
