固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

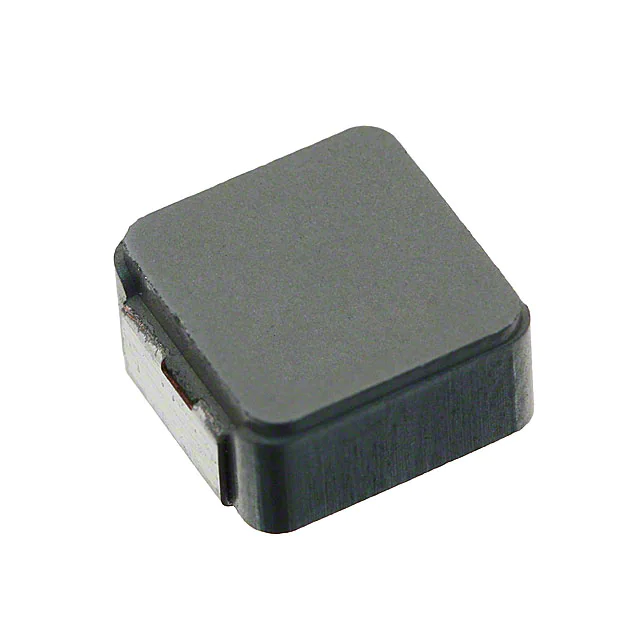

IHLP3232DZER330M11FIXED IND 33UH 3.2A 144 MOHM SMD Vishay Dale |
5,659 |
|
数据手册 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.2 A | 3.2A | Shielded | 144mOhm Max | - | 6.7MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER100M11FIXED IND 10UH 5.4A 51.8MOHM SMD Vishay Dale |
5,323 |
|
数据手册 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.4 A | 6.4A | Shielded | 51.8mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|

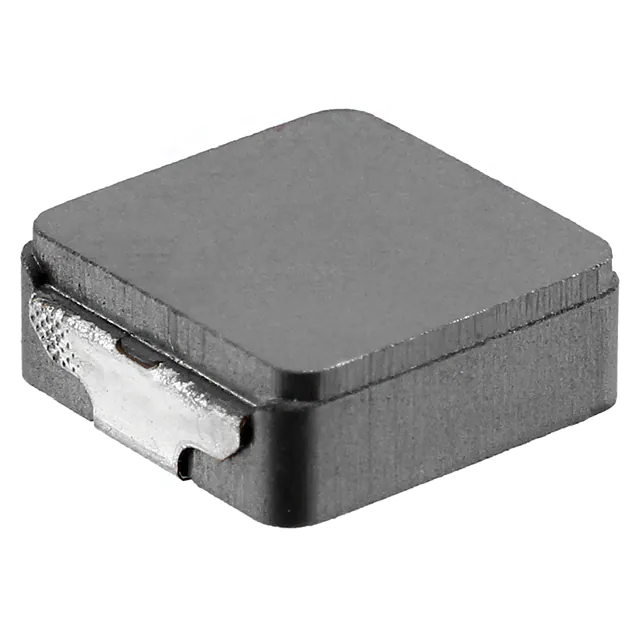

IHLP4040DZER4R7M01FIXED IND 4.7UH 9.5A 16.5MOHM SM Vishay Dale |
10,883 |
|
数据手册 |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 9.5 A | 17A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER1R0M11FIXED IND 1UH 18.2A 4.63MOHM SMD Vishay Dale |
3,436 |
|
数据手册 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18.2 A | 12A | Shielded | 4.63mOhm Max | - | 49MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER470M11FIXED IND 47UH 3.3A 145 MOHM SMD Vishay Dale |
3,429 |
|
数据手册 |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.3 A | 3A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER150M11FIXED IND 15UH 4.9A 65.3MOHM SMD Vishay Dale |
2,315 |
|
数据手册 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 4.9 A | 3.7A | Shielded | 65.3mOhm Max | - | 10.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER3R3M11FIXED IND 3.3UH 10.5A 14.9 MOHM Vishay Dale |
1,805 |
|
数据手册 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10.5 A | 9.7A | Shielded | 14.9mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|

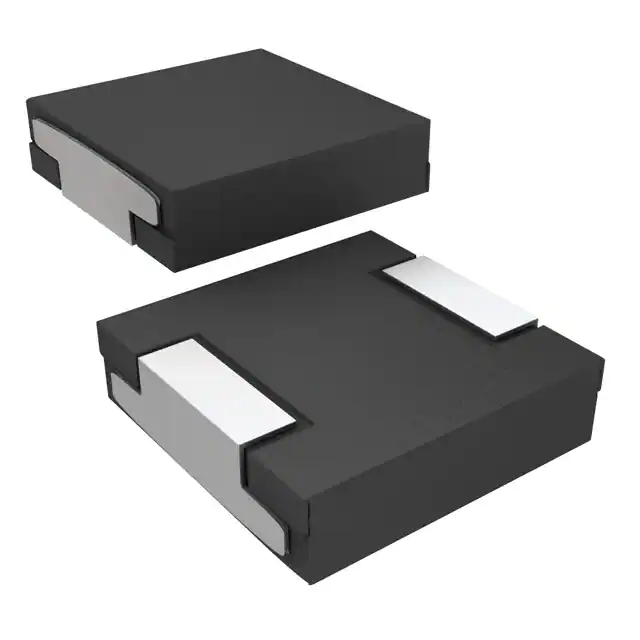

IHLP5050CEER2R2M01FIXED IND 2.2UH 16A 8 MOHM SMD Vishay Dale |
22,496 |
|
数据手册 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
|
IHLP4040DZERR36M01FIXED IND 360NH 31.5A 1.4MOHM SM Vishay Dale |
4,923 |
|
数据手册 |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 31.5 A | 60A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER220M11FIXED IND 22UH 5A 66 MOHM SMD Vishay Dale |
3,178 |
|
数据手册 |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5 A | 4.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
