固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

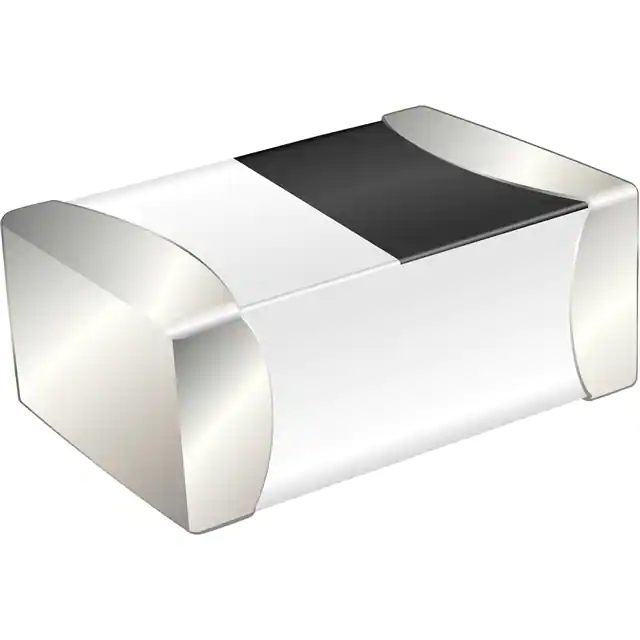

LMCI0201-4N7STFIXED IND 4.7NH 220MA 450MOHM SM Venkel |
67,200 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 220 mA | - | Shielded | 450mOhm | 13 @ 500MHz | 6.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-3N3STFIXED IND 3.3NH 270MA 300MOHM SM Venkel |
52,300 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 270 mA | - | Shielded | 300mOhm | 13 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-1N2STFIXED IND 1.2NH 420MA 120MOHM SM Venkel |
52,300 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 420 mA | - | Shielded | 120mOhm | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-10NJTFIXED IND 10NH 160MA 800MOHM SMD Venkel |
52,300 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 160 mA | - | Shielded | 800mOhm | 13 @ 500MHz | 3.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-12NJTFIXED IND 12NH 160MA 800MOHM SMD Venkel |
52,300 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 160 mA | - | Shielded | 800mOhm | 13 @ 500MHz | 3.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-8N2JTFIXED IND 8.2NH 190MA 560MOHM SM Venkel |
52,300 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 190 mA | - | Shielded | 560mOhm | 13 @ 500MHz | 4.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-1N0STFIXED IND 1NH 520MA 80 MOHM SMD Venkel |
52,290 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 520 mA | - | Shielded | 80mOhm | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-2N7STFIXED IND 2.7NH 310MA 220MOHM SM Venkel |
52,290 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 310 mA | - | Shielded | 220mOhm | 13 @ 500MHz | 9.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-6N8JTFIXED IND 6.8NH 200MA 500MOHM SM Venkel |
52,290 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±5% | 200 mA | - | Shielded | 500mOhm | 13 @ 500MHz | 4.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LMCI0201-3N9STFIXED IND 3.9NH 230MA 420MOHM SM Venkel |
52,290 |
|
数据手册 |
LMCI | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 230 mA | - | Shielded | 420mOhm | 13 @ 500MHz | 7.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
