固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

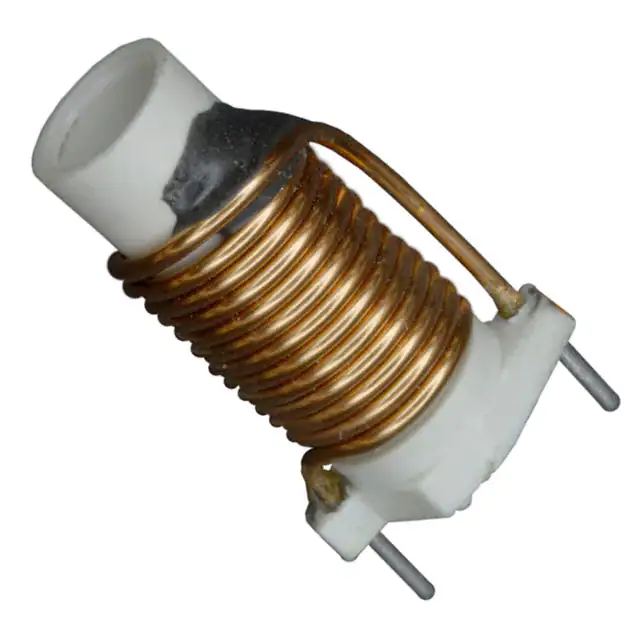

FIRCH-3-BFIXED IND 3.6UH 8.1A 9.95MOHM TH Triad Magnetics |
4,193 |
|
数据手册 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±15% | 8.1 A | - | Unshielded | 9.95mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

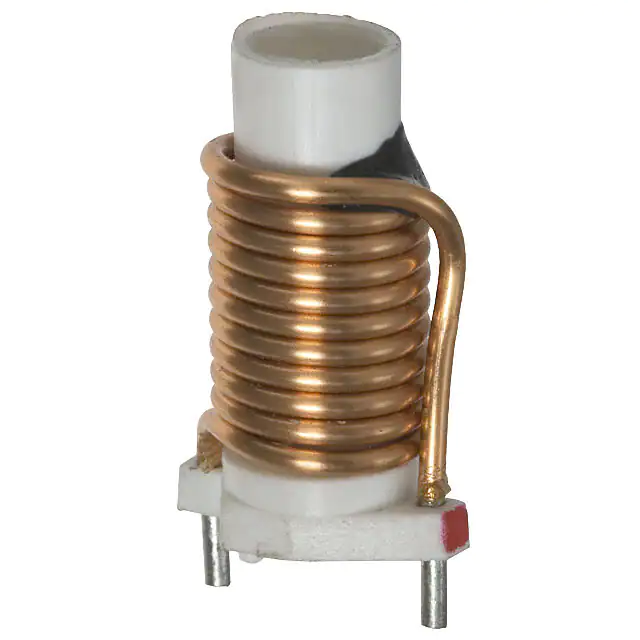

FIRCH-4-BFIXED IND 5UH 6.8A 14.1 MOHM TH Triad Magnetics |
2,620 |
|
数据手册 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±15% | 6.8 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

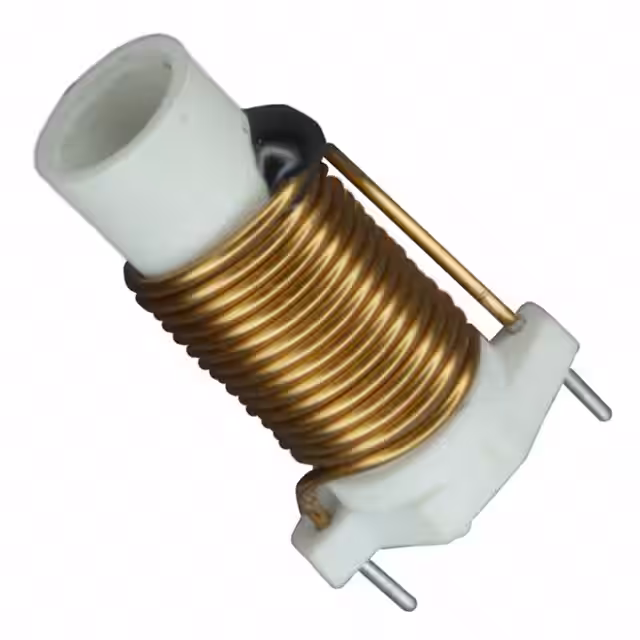

FIRCH-5-BFIXED IND 5.9UH 5.7A 18.5MOHM TH Triad Magnetics |
3,519 |
|
数据手册 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.9 µH | ±15% | 5.7 A | - | Unshielded | 18.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

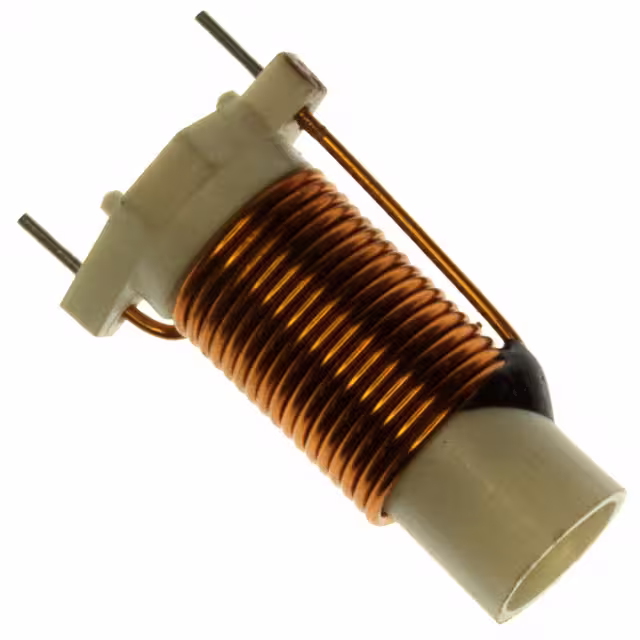

FIRCH-6-BFIXED IND 7.22UH 4.8A 26.1 MOHM Triad Magnetics |
4,738 |
|
数据手册 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.22 µH | ±15% | 4.8 A | - | Unshielded | 26.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

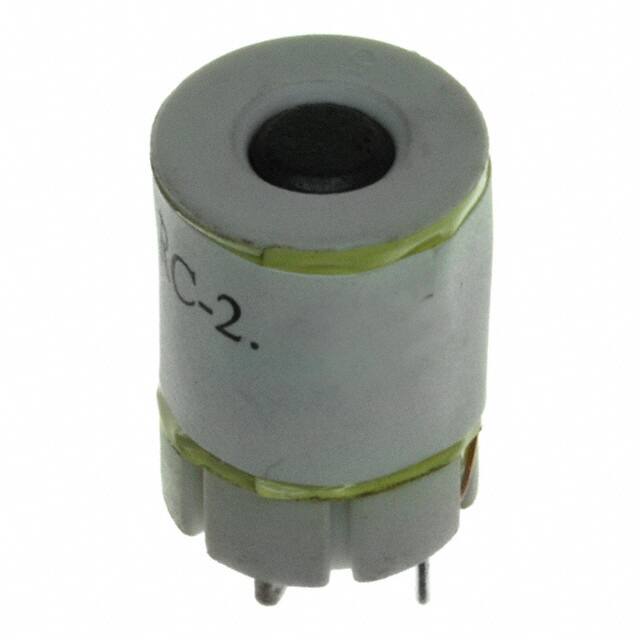

RC-2FIXED IND 3.9MH 320MA 3.9 OHM TH Triad Magnetics |
3,137 |
|
数据手册 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 320 mA | - | Unshielded | 3.9Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

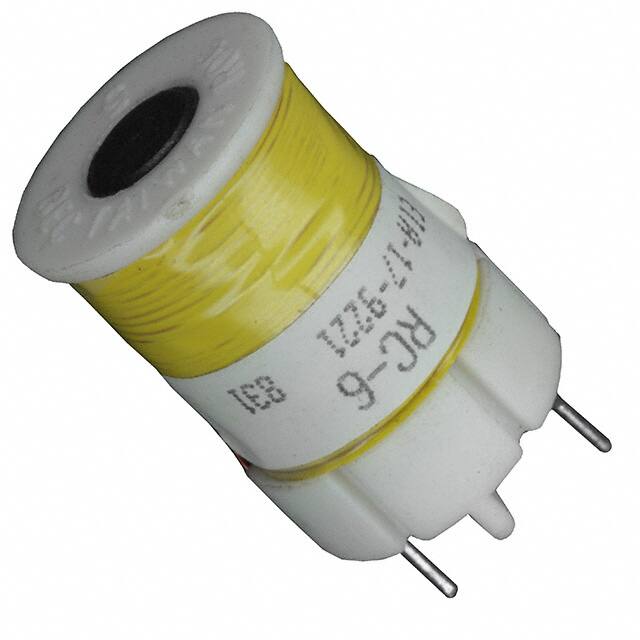

RC-6FIXED IND 560UH 800MA 600MOHM TH Triad Magnetics |
4,491 |
|
数据手册 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 800 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
FIT68-5FIXED IND 33.15UH 5.7A 28.8 MOHM Triad Magnetics |
4,262 |
|
数据手册 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33.15 µH | - | 5.7 A | - | Unshielded | 28.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-2FIXED IND 71.1UH 3.4A 86.1 MOHM Triad Magnetics |
2,776 |
|
数据手册 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 71.1 µH | - | 3.4 A | - | Unshielded | 86.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-7FIXED IND 18.64UH 8.1A 14.8 MOHM Triad Magnetics |
1,251 |
|
数据手册 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 18.64 µH | - | 8.1 A | - | Unshielded | 14.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-1-BFIXED IND 89.5UH 2.8A 108MOHM TH Triad Magnetics |
4,925 |
|
数据手册 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 89.5 µH | - | 2.8 A | - | Unshielded | 108mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
