固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPO-3.0-100FIXED IND 100UH 3A 80 MOHM TH Talema Group LLC |
2,065 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 3 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|
DPO-5.0-100FIXED IND 100UH 5A 59 MOHM TH Talema Group LLC |
348 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 5 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.512" W (30.00mm x 13.00mm) | - |
|
DPO-5.0-68FIXED IND 68UH 5A 55 MOHM TH Talema Group LLC |
1,972 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 68 µH | - | 5 A | - | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.024" Dia x 0.472" W (26.00mm x 12.00mm) | - |
|
DPO-0.5-100FIXED IND 100UH 500MA 140MOHM TH Talema Group LLC |
3,927 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 500 mA | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.315" W (14.00mm x 8.00mm) | - |
|
DPO-3.0-22FIXED IND 22UH 3A 50 MOHM TH Talema Group LLC |
2,405 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 22 µH | - | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.315" W (14.00mm x 8.00mm) | - |
|
DPO-2.0-100FIXED IND 100UH 2A 109 MOHM TH Talema Group LLC |
4,550 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 2 A | - | Unshielded | 109mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.315" W (19.00mm x 8.00mm) | - |
|
DPO-3.0-47FIXED IND 47UH 3A 212 MOHM TH Talema Group LLC |
2,846 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 47 µH | - | 3 A | - | Unshielded | 212mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.787" Dia x 0.315" W (20.00mm x 8.00mm) | - |
|

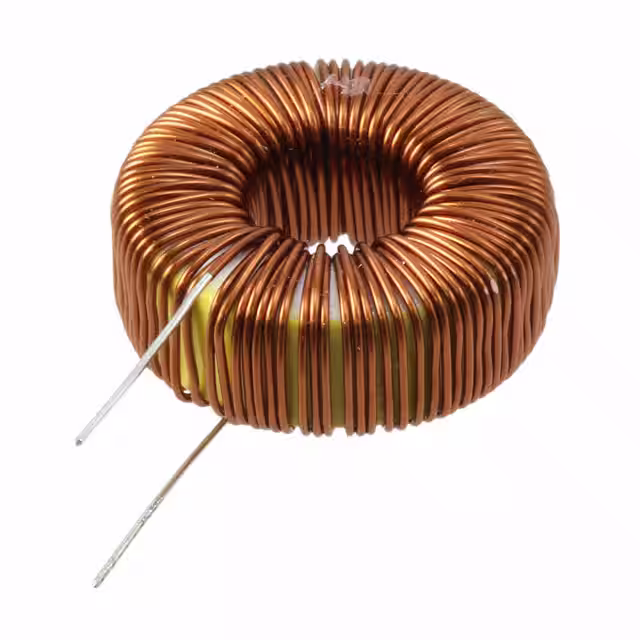

DPO-0.5-470FIXED IND 470UH 500MA 322MOHM TH Talema Group LLC |
1,451 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | - | 500 mA | - | Unshielded | 322mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.787" Dia x 0.354" W (20.00mm x 9.00mm) | - |
|
DPO-0.5-150FIXED IND 150UH 500MA 173MOHM TH Talema Group LLC |
1,343 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 500 mA | - | Unshielded | 173mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
|

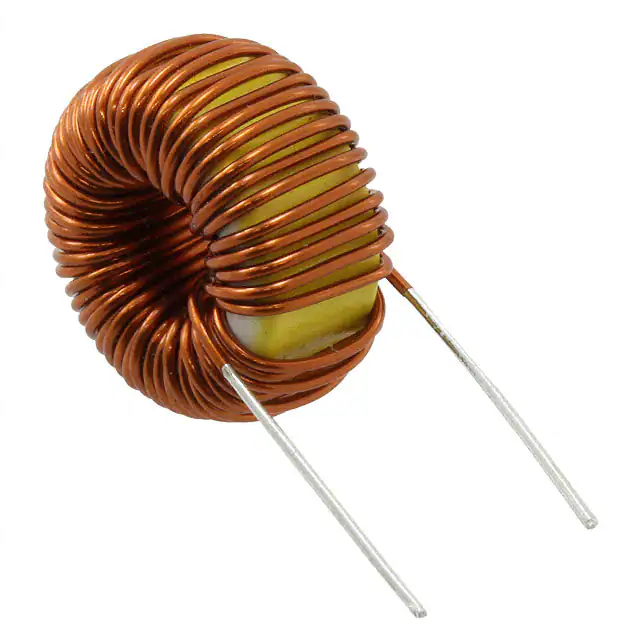

DPO-1.0-100FIXED IND 100UH 1A 97 MOHM TH Talema Group LLC |
4,186 |
|
数据手册 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 1 A | - | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
