固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

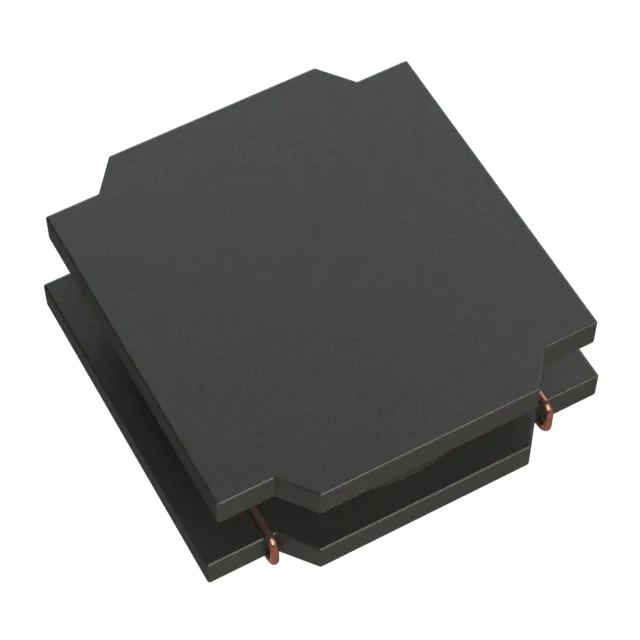

SWPA3010S100MTFIXED IND 10UH 580MA 520MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
5,880 |
|
数据手册 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 580 mA | 750mA | Shielded | 520mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
SWPA252010S2R2NTFIXED IND 2.2UH 1.2A 209MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,854 |
|
数据手册 |
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.2 A | 1.6A | Shielded | 209mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SWPA252010S4R7MTFIXED IND 4.7UH 700MA 563MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
1,812 |
|
数据手册 |
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 700 mA | 1.15A | Shielded | 563mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SPH252010H1R5MTFIXED IND 1.5UH 1.55A 108MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
1,900 |
|
数据手册 |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.55 A | 2.05A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SPH252012HR47MTFIXED IND 470NH 3A 36 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,233 |
|
数据手册 |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3 A | 4.1A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
WPN201610U1R0MTY01FIXED IND 1UH 3.1A 60 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,830 |
|
数据手册 |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 3.8A | Shielded | 60mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SWPA4018S2R2MTFIXED IND 2.2UH 1.65A 59MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,408 |
|
数据手册 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.65 A | 3.2A | Shielded | 59mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SWPA4020S2R2NTFIXED IND 2.2UH 1.85A 52MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,250 |
|
数据手册 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.85 A | 3.7A | Shielded | 52mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
WPN201610HR68MTFIXED IND 680NH 2.5A 65MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,940 |
|
数据手册 |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.5 A | 4A | Shielded | 65mOhm Max | - | 77MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SWPA4030SR91NTFIXED IND 910NH 4.15A 17MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,920 |
|
数据手册 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 910 nH | ±30% | 4.15 A | 6.8A | Shielded | 17mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
