固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

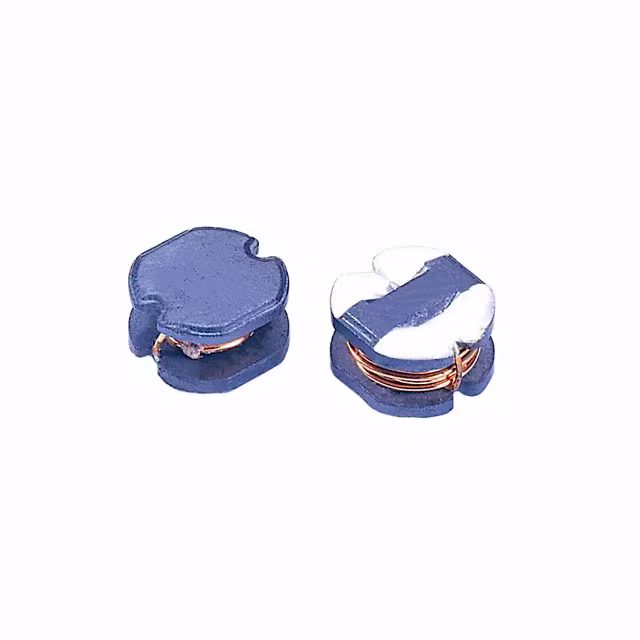

SC53-271FIXED IND 270UH 350MA 2.4OHM SMD Signal Transformer |
4,877 |
|
数据手册 |
SC53 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 350 mA | 300mA | Unshielded | 2.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.130" (3.30mm) |
|

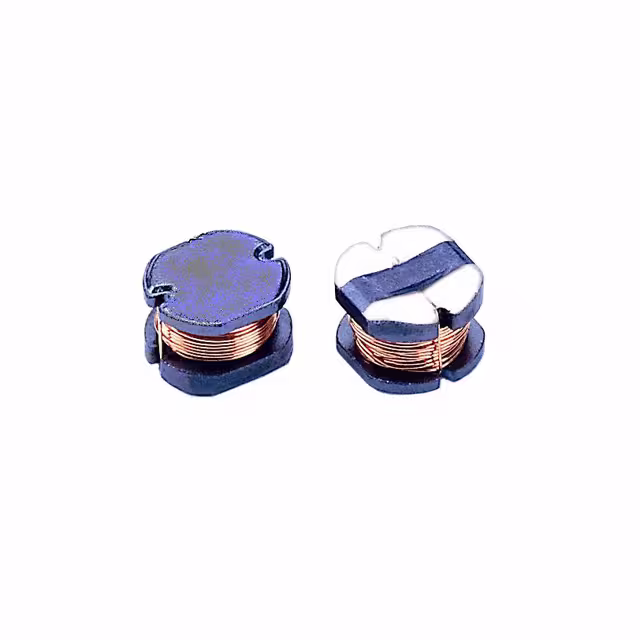

SC43-120FIXED IND 12UH 1.2A 210 MOHM SMD Signal Transformer |
3,345 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1.2 A | 1.05A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-150FIXED IND 15UH 1.1A 235 MOHM SMD Signal Transformer |
2,334 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.1 A | 920mA | Unshielded | 235mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-180FIXED IND 18UH 950MA 338MOHM SMD Signal Transformer |
4,639 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 950 mA | 840mA | Unshielded | 338mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-1R8FIXED IND 1.8UH 2.9A 42 MOHM SMD Signal Transformer |
3,193 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 2.9 A | 2.91A | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-220FIXED IND 22UH 860MA 378MOHM SMD Signal Transformer |
1,046 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 860 mA | 760mA | Unshielded | 378mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-270FIXED IND 27UH 740MA 522MOHM SMD Signal Transformer |
2,654 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 740 mA | 710mA | Unshielded | 522mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-2R2FIXED IND 2.2UH 2.7A 47 MOHM SMD Signal Transformer |
1,131 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 2.7 A | 2.6A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-2R7FIXED IND 2.7UH 2.5A 52 MOHM SMD Signal Transformer |
4,696 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±20% | 2.5 A | 2.43A | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-330FIXED IND 33UH 720MA 540MOHM SMD Signal Transformer |
3,085 |
|
数据手册 |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 720 mA | 640mA | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
