固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

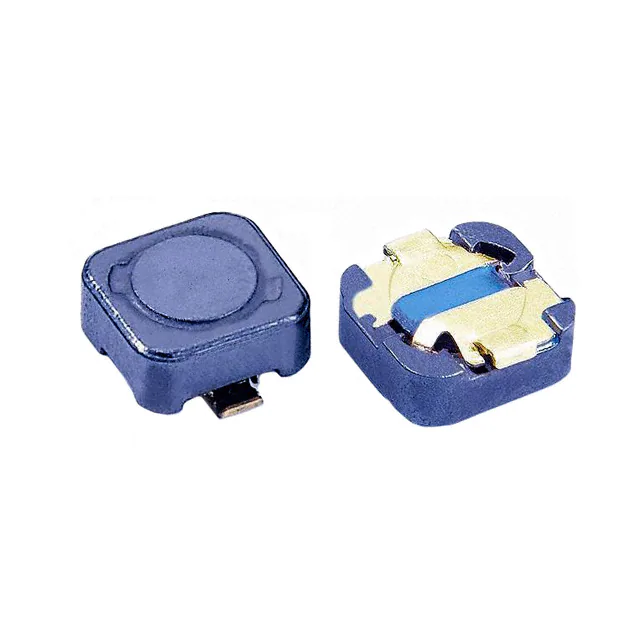

SCRH62-120FIXED IND 12UH 1.24A 200MOHM SMD Signal Transformer |
4,295 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.24 A | 1A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-150FIXED IND 15UH 1.17A 230MOHM SMD Signal Transformer |
1,810 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.17 A | 900mA | Shielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-180FIXED IND 18UH 1.05A 270MOHM SMD Signal Transformer |
3,164 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.05 A | 800mA | Shielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-220FIXED IND 22UH 990MA 340MOHM SMD Signal Transformer |
1,391 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 990 mA | 740mA | Shielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-270FIXED IND 27UH 890MA 380MOHM SMD Signal Transformer |
4,463 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 890 mA | 660mA | Shielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-2R9FIXED IND 2.9UH 2.5A 68 MOHM SMD Signal Transformer |
1,141 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.9 µH | -20%, +40% | 2.5 A | 1.94A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-330FIXED IND 33UH 840MA 450MOHM SMD Signal Transformer |
3,317 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 840 mA | 590mA | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-390FIXED IND 39UH 790MA 490MOHM SMD Signal Transformer |
4,164 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 790 mA | 540mA | Shielded | 490mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-470FIXED IND 47UH 750MA 690MOHM SMD Signal Transformer |
1,867 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 750 mA | 500mA | Shielded | 690mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SCRH62-4R0FIXED IND 4UH 2A 80 MOHM SMD Signal Transformer |
3,844 |
|
数据手册 |
SCRH62 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | -20%, +40% | 2 A | 1.63A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
