固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

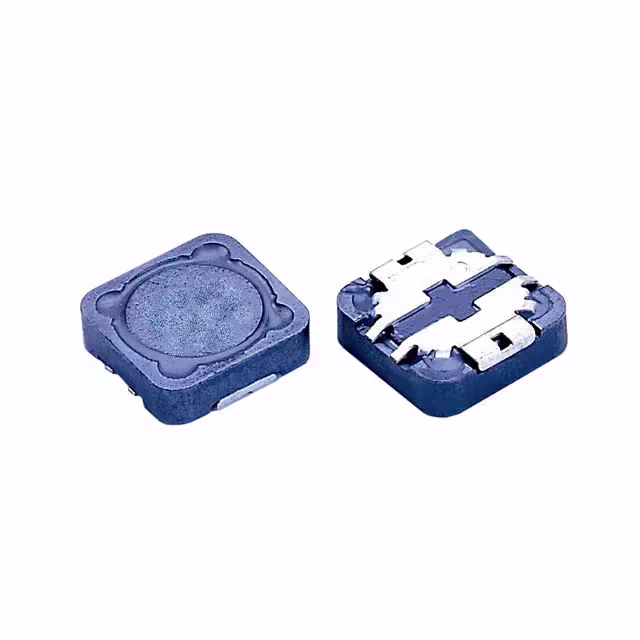

SCRH123-151FIXED IND 150UH 850MA 812MOHM SM Signal Transformer |
2,648 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 850 mA | 1.3A | Shielded | 812mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-180FIXED IND 18UH 2.4A 104 MOHM SMD Signal Transformer |
4,016 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 2.4 A | 3.8A | Shielded | 104mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-181FIXED IND 180UH 760MA 918MOHM SM Signal Transformer |
3,136 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 760 mA | 1.2A | Shielded | 918mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-1R5FIXED IND 1.5UH 8A 15 MOHM SMD Signal Transformer |
2,634 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 8 A | 12A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-220FIXED IND 22UH 2.16A 120MOHM SMD Signal Transformer |
2,763 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.16 A | 3.5A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-221FIXED IND 220UH 680MA 1.06OHM SM Signal Transformer |
4,912 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 680 mA | 1A | Shielded | 1.06Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-270FIXED IND 27UH 2A 131 MOHM SMD Signal Transformer |
3,273 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2 A | 3.2A | Shielded | 131mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-271FIXED IND 270UH 620MA 1.3OHM SMD Signal Transformer |
4,629 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 620 mA | 900mA | Shielded | 1.3Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-2R2FIXED IND 2.2UH 7.2A 18 MOHM SMD Signal Transformer |
4,328 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 7.2 A | 10A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
|
|
SCRH123-330FIXED IND 33UH 1.8A 176 MOHM SMD Signal Transformer |
2,752 |
|
数据手册 |
SCRH123 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.8 A | 3A | Shielded | 176mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.150" (3.80mm) |
