固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

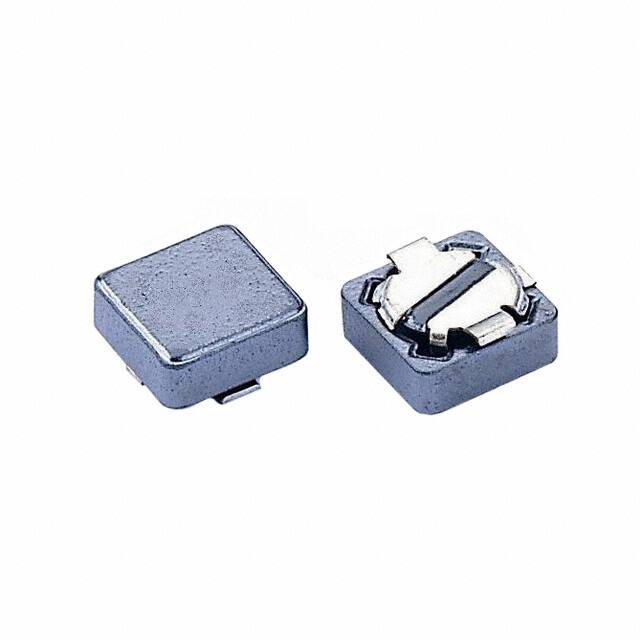

SCPH73-151FIXED IND 150UH 540MA 1.35OHM SM Signal Transformer |
4,452 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 540 mA | 370mA | Shielded | 1.35Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-180FIXED IND 18UH 1.54A 150MOHM SMD Signal Transformer |
2,145 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.54 A | 1.1A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-181FIXED IND 180UH 480MA 1.5OHM SMD Signal Transformer |
4,369 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 480 mA | 330mA | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-220FIXED IND 22UH 1.38A 170MOHM SMD Signal Transformer |
2,411 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.38 A | 1A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-221FIXED IND 220UH 430MA 1.7OHM SMD Signal Transformer |
1,947 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 430 mA | 300mA | Shielded | 1.7Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-270FIXED IND 27UH 1.3A 210 MOHM SMD Signal Transformer |
1,504 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 1.3 A | 880mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-271FIXED IND 270UH 400MA 1.9OHM SMD Signal Transformer |
4,680 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 400 mA | 280mA | Shielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-330FIXED IND 33UH 1.23A 240MOHM SMD Signal Transformer |
1,888 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.23 A | 800mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-331FIXED IND 330UH 340MA 2.8OHM SMD Signal Transformer |
2,401 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 340 mA | 250mA | Shielded | 2.8Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-390FIXED IND 39UH 1.16A 310MOHM SMD Signal Transformer |
1,339 |
|
数据手册 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 1.16 A | 750mA | Shielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
