固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRH4D18-6R8FIXED IND 6.8UH 1.28A 170MOHM SM Signal Transformer |
1,722 |
|
数据手册 |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.28 A | 760mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-8R2FIXED IND 8.2UH 1.1A 190MOHM SMD Signal Transformer |
1,771 |
|
数据手册 |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 1.1 A | 680mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

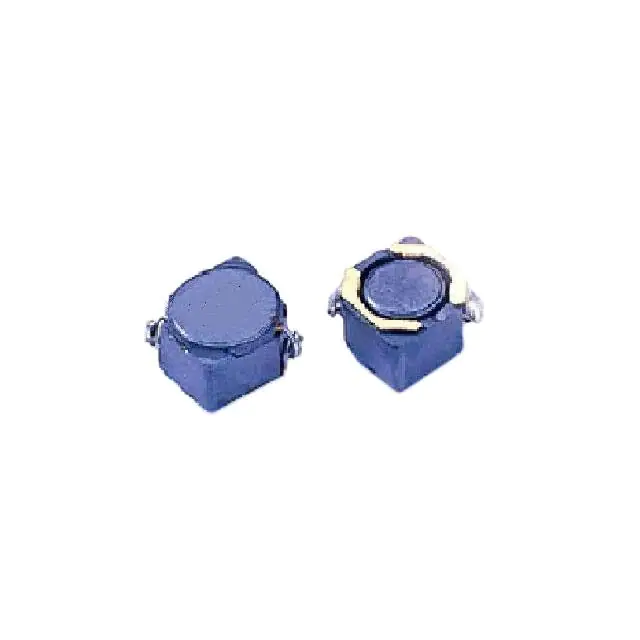

SCRH4D28-100FIXED IND 10UH 1.51A 128MOHM SMD Signal Transformer |
2,692 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 1.51 A | 1A | Shielded | 128mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-120FIXED IND 12UH 1.5A 131 MOHM SMD Signal Transformer |
3,145 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 1.5 A | 840mA | Shielded | 131mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-121FIXED IND 120UH 480MA 1.27OHM SM Signal Transformer |
2,651 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±30% | 480 mA | 270mA | Shielded | 1.27Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-150FIXED IND 15UH 1.48A 149MOHM SMD Signal Transformer |
2,821 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 1.48 A | 760mA | Shielded | 149mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-151FIXED IND 150UH 460MA 1.35OHM SM Signal Transformer |
1,151 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±30% | 460 mA | 240mA | Shielded | 1.35Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-180FIXED IND 18UH 1.42A 166MOHM SMD Signal Transformer |
4,292 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±30% | 1.42 A | 720mA | Shielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-181FIXED IND 180UH 440MA 1.54OHM SM Signal Transformer |
1,006 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±30% | 440 mA | 220mA | Shielded | 1.54Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SCRH4D28-1R2FIXED IND 1.2UH 5A 23.6 MOHM SMD Signal Transformer |
3,158 |
|
数据手册 |
SCRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±30% | 5 A | 2.56A | Shielded | 23.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
