固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

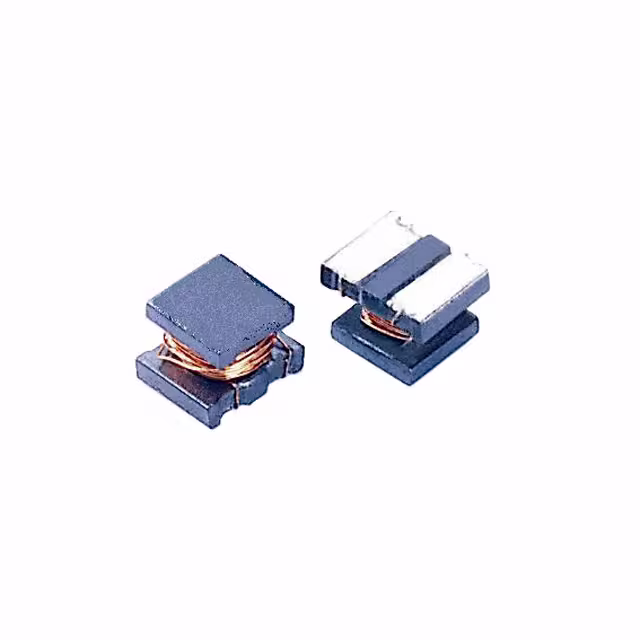

SC1210-101FIXED IND 100UH 220MA 4.55OHM SM Signal Transformer |
1,514 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 220 mA | 100mA | Unshielded | 4.55Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-1R0FIXED IND 1UH 1.25A 117 MOHM SMD Signal Transformer |
4,101 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 1.25 A | 800mA | Unshielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-220FIXED IND 22UH 560MA 923MOHM SMD Signal Transformer |
2,967 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 560 mA | 250mA | Unshielded | 923mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-221FIXED IND 220UH 150MA 10.92 OHM Signal Transformer |
1,531 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 150 mA | 70mA | Unshielded | 10.92Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-2R2FIXED IND 2.2UH 1.15A 169MOHM SM Signal Transformer |
1,753 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.15 A | 600mA | Unshielded | 169mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-331FIXED IND 330UH 140MA 13 OHM SMD Signal Transformer |
3,175 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 140 mA | 60mA | Unshielded | 13Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-391FIXED IND 390UH 110MA 22.1OHM SM Signal Transformer |
1,614 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | 110 mA | 60mA | Unshielded | 22.1Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-470FIXED IND 47UH 380MA 1.69OHM SMD Signal Transformer |
1,546 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 380 mA | 170mA | Unshielded | 1.69Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-471FIXED IND 470UH 100MA 24.7OHM SM Signal Transformer |
1,890 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 100 mA | 60mA | Unshielded | 24.7Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
|
|
SC1210-4R7FIXED IND 4.7UH 980MA 260MOHM SM Signal Transformer |
3,812 |
|
数据手册 |
SC1210 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 980 mA | 450mA | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" (2.20mm) |
