固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-Q0402-33NG-TFIXED IND 33NH 400MA 0.35OHM SMD Abracon LLC |
3,975 |
|
数据手册 |
AISC-Q0402 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | 400 mA | - | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402-56NG-TFIXED IND 56NH 100MA 0.97OHM SMD Abracon LLC |
3,930 |
|
数据手册 |
AISC-Q0402 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±2% | 100 mA | - | Unshielded | 970mOhm Max | 25 @ 250MHz | 1.62GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402-18NG-TFIXED IND 18NH 420MA 0.23OHM SMD Abracon LLC |
3,925 |
|
数据手册 |
AISC-Q0402 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 18 nH | ±2% | 420 mA | - | Unshielded | 230mOhm Max | 25 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402-47NG-TFIXED IND 47NH 150MA 0.83OHM SMD Abracon LLC |
3,880 |
|
数据手册 |
AISC-Q0402 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±2% | 150 mA | - | Unshielded | 830mOhm Max | 25 @ 250MHz | 1.75GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
AISC-0603-R011G-TFIXED IND 11NH 600MA 130MOHM SMD Abracon LLC |
2,750 |
|
数据手册 |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603HP-R18J-TFIXED IND 180NH 320MA 1.2OHM SMD Abracon LLC |
9,000 |
|
数据手册 |
AISC-0603HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 320 mA | - | Unshielded | 1.2Ohm Max | 28 @ 100MHz | 1.05GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AOTA-B201610S3R3-101-TFIXED IND 3.3UH 2.4 A 140MOHM Abracon LLC |
6,890 |
|
数据手册 |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.1 A | 2.4A | Shielded | 140mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AISC-1008-R068J-TFIXED IND 68NH 1A 210 MOHM SMD Abracon LLC |
2,773 |
|
数据手册 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 210mOhm Max | 65 @ 350MHz | 1.2GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

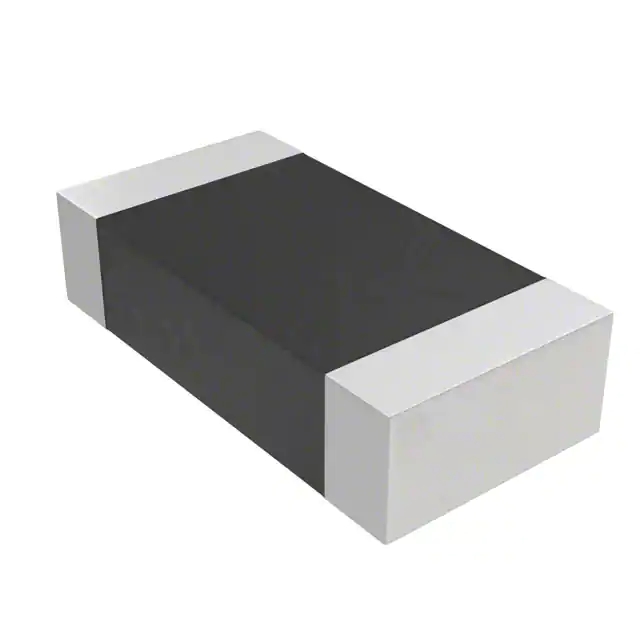

ASMPL-0603-R22N-TFIXED IND 220NH 1.2A 150MOHM SMD Abracon LLC |
4,843 |
|
数据手册 |
ASMPL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±30% | 1.2 A | 1.45A | Unshielded | 150mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
AOTA-B201608SR24MTFIXED IND 0.24UH 5.5A 22MOHM SMD Abracon LLC |
4,580 |
|
数据手册 |
AOTA-B201608S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5.5 A | 7.5A | Shielded | 22mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
