固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIUR-15-102KFIXED IND 1MH 1A 710 MOHM TH Abracon LLC |
1,443 |
|
数据手册 |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 710mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
|
|
AIUR-15-101KFIXED IND 100UH 3.2A 82 MOHM TH Abracon LLC |
745 |
|
数据手册 |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3.2 A | - | Unshielded | 82mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
|

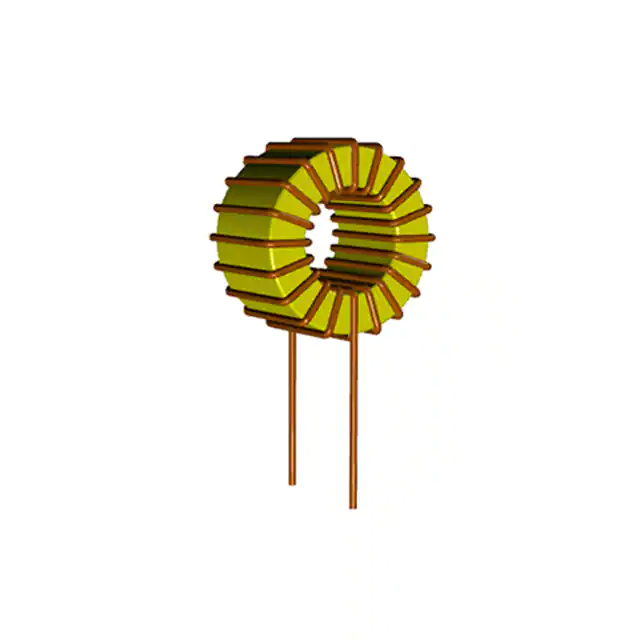

ATCA-01-101M-VFIXED IND 100UH 2A 81 MOHM TH Abracon LLC |
439 |
|
数据手册 |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2 A | - | Unshielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.709" L x 0.453" W (18.00mm x 11.50mm) | - |
.jpg)
|
AIRD-01-331KFIXED IND 330UH 1.3A 336 MOHM TH Abracon LLC |
812 |
|
数据手册 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
AIRD-01-100KFIXED IND 10UH 9A 10 MOHM TH Abracon LLC |
638 |
|
数据手册 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9 A | 21.2A | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
AIRD-01-330KFIXED IND 33UH 4A 40 MOHM TH Abracon LLC |
447 |
|
数据手册 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4 A | 13.2A | Unshielded | 40mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
AIRD-01-150KFIXED IND 15UH 7.2A 15 MOHM TH Abracon LLC |
176 |
|
数据手册 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 7.2 A | 17.5A | Unshielded | 15mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
AIRD-02-222KFIXED IND 2.2MH 800MA 1.54OHM TH Abracon LLC |
278 |
|
数据手册 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | 2A | Unshielded | 1.54Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-470KFIXED IND 47UH 5.5A 35 MOHM TH Abracon LLC |
1,730 |
|
数据手册 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 5.5 A | 15A | Unshielded | 35mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-122KFIXED IND 1.2MH 800MA 1.14OHM TH Abracon LLC |
578 |
|
数据手册 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | 2.7A | Unshielded | 1.14Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
