固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0530LR-1R5M-T2FIXED IND 1.5UH 8A 20 MOHM SMD Abracon LLC |
3,874 |
|
数据手册 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 8 A | 7A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|

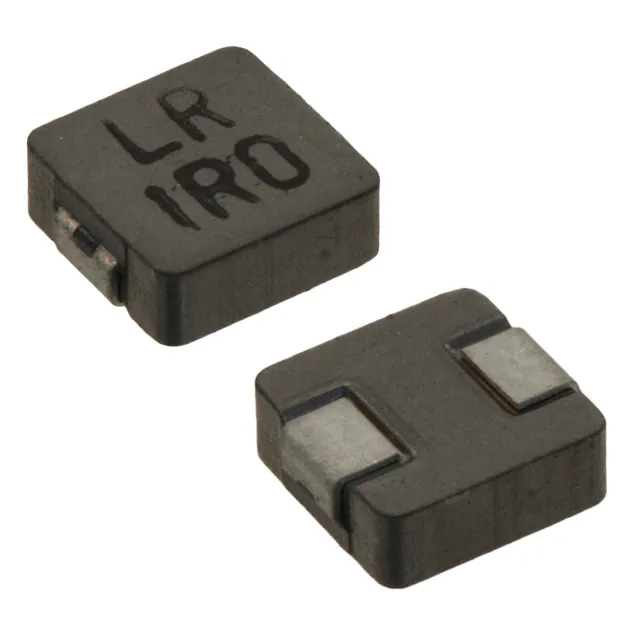

ASPI-0520LR-4R7M-T2FIXED IND 4.7UH 3.7A 58 MOHM SMD Abracon LLC |
3,423 |
|
数据手册 |
ASPI-0520LR | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.7 A | 3.7A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.083" (2.10mm) |
|

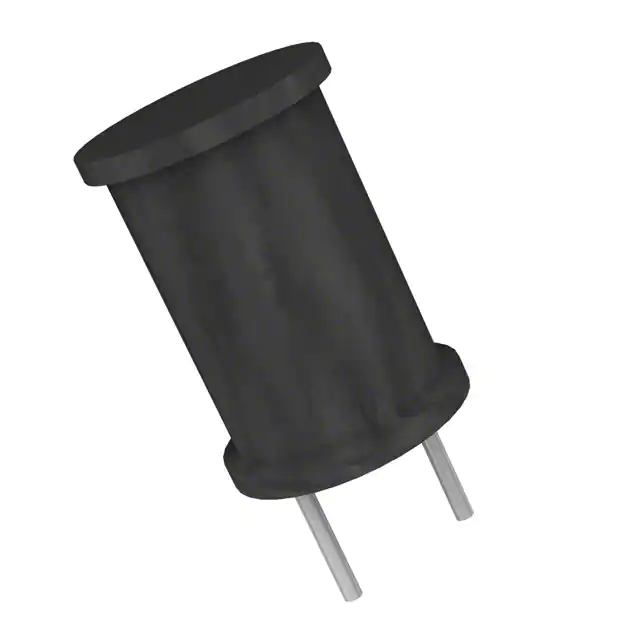

AIUR-02H-102KFIXED IND 1MH 220MA 1.3 OHM TH Abracon LLC |
3,146 |
|
数据手册 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | 510mA | Unshielded | 1.3Ohm Max | 15 @ 250kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|

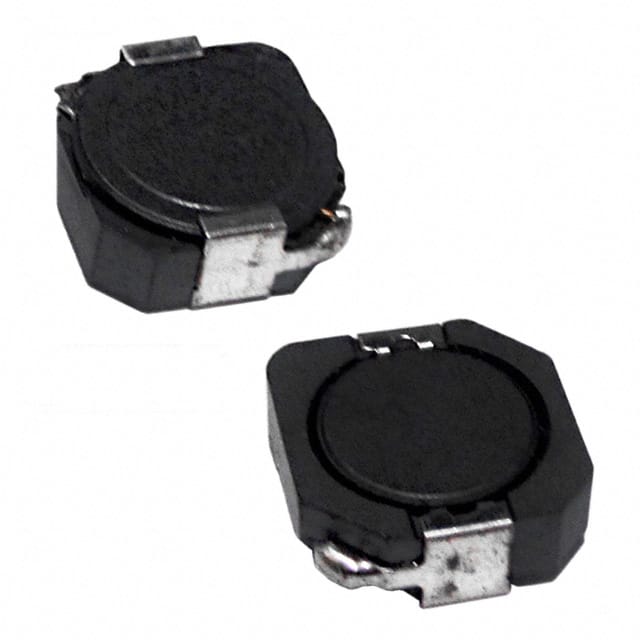

ASPI-0602S-3R3M-TFIXED IND 3.3UH 3A 40 MOHM SMD Abracon LLC |
3,040 |
|
数据手册 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | - | Shielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0520LR-3R3M-T2FIXED IND 3.3UH 4.5A 50 MOHM SMD Abracon LLC |
1,938 |
|
数据手册 |
ASPI-0520LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 4.5 A | 4.2A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.083" (2.10mm) |
|
|
ASPI-0530LR-3R3M-T2FIXED IND 3.3UH 6.5A 36 MOHM SMD Abracon LLC |
1,064 |
|
数据手册 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.5 A | 5A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|

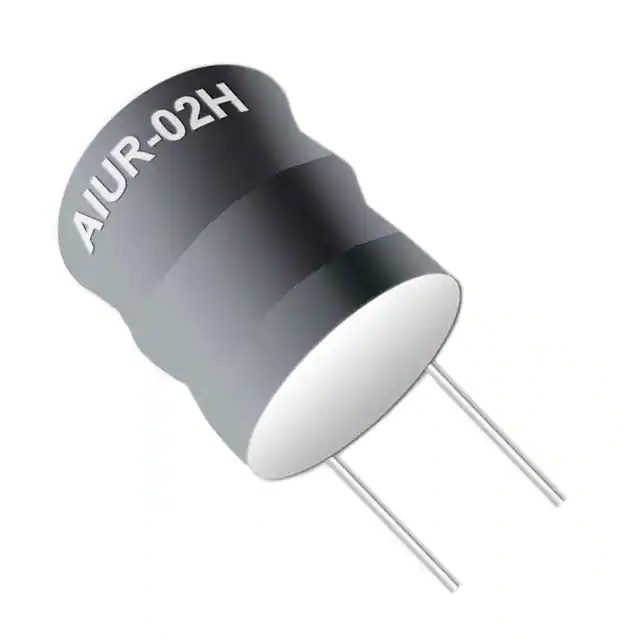

AIUR-02H-221KFIXED IND 220UH 500MA 340MOHM TH Abracon LLC |
3,408 |
|
数据手册 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | 1A | Unshielded | 340mOhm Max | 20 @ 790kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
ASPI-0630LR-1R5M-T15FIXED IND 1.5UH 10A 12 MOHM SMD Abracon LLC |
6,906 |
|
数据手册 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 10 A | 14A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-R47M-T15FIXED IND 470NH 18A 4.1 MOHM SMD Abracon LLC |
2,126 |
|
数据手册 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 18 A | 20A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
ASPI-7318-2R2M-TFIXED IND 2.2UH 8A 20 MOHM SMD Abracon LLC |
12,052 |
|
数据手册 |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 8 A | 12A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
