固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIMC-0805-3N9S-TFIXED IND 3.9NH 600MA 150MOHM SM Abracon LLC |
13,574 |
|
数据手册 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 12 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIMC-0805-2N7S-TFIXED IND 2.7NH 600MA 100MOHM SM Abracon LLC |
11,074 |
|
数据手册 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 12 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIMC-0805-27NJ-TFIXED IND 27NH 300MA 550MOHM SMD Abracon LLC |
8,478 |
|
数据手册 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 550mOhm Max | 18 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIMC-0805-8N2J-TFIXED IND 8.2NH 400MA 280MOHM SM Abracon LLC |
7,849 |
|
数据手册 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 300 mA | - | Unshielded | 280mOhm Max | 15 @ 100MHz | 2.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIMC-0805-68NJ-TFIXED IND 68NH 300MA 800MOHM SMD Abracon LLC |
6,857 |
|
数据手册 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 18 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

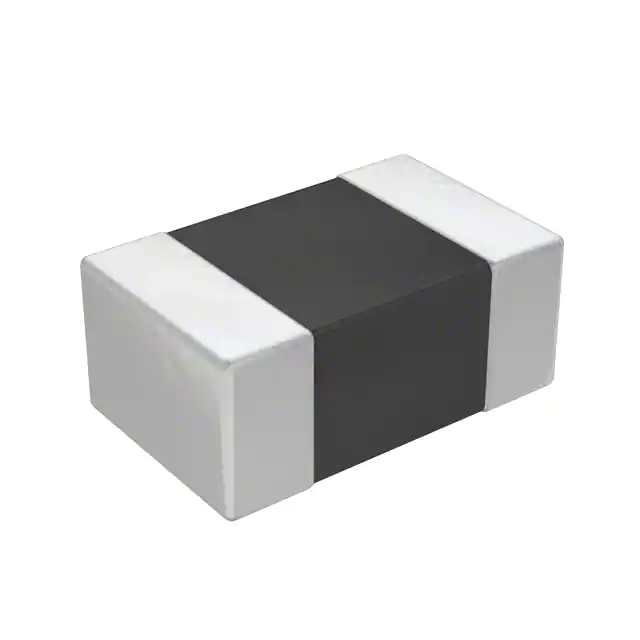

ASMCI-0805-4R7M-TFIXED IND 4.7UH 180MA 300MOHM SM Abracon LLC |
90,321 |
|
数据手册 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 180 mA | - | Shielded | 300mOhm | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

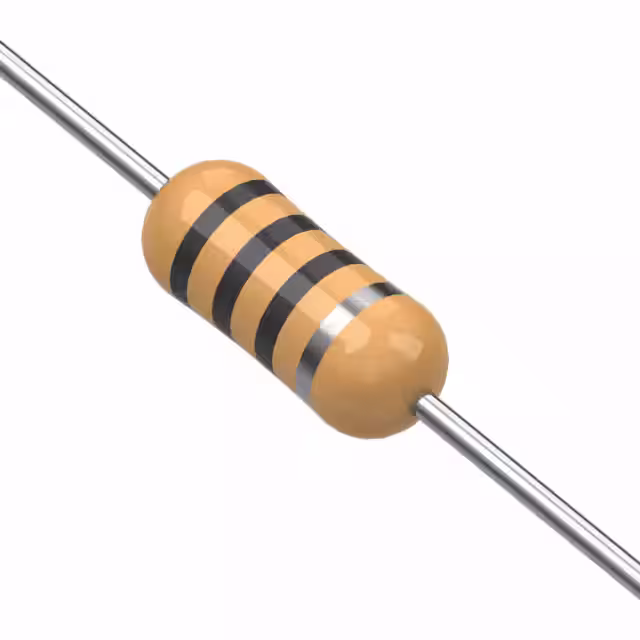

AICC-02-220K-TFIXED IND 22UH 285MA 1.35 OHM TH Abracon LLC |
4,850 |
|
数据手册 |
AICC-02 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 285 mA | - | Unshielded | 1.35Ohm Max | 50 @ 2.52MHz | 13MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.110" Dia x 0.245" L (2.80mm x 6.22mm) | - |
|
ASMCI-0603-100M-TFIXED IND 10UH 50MA 900 MOHM SMD Abracon LLC |
10,346 |
|
数据手册 |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 50 mA | - | Shielded | 900mOhm | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASMCI-0603-R10M-TFIXED IND 100NH 700MA 140MOHM SM Abracon LLC |
5,076 |
|
数据手册 |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 700 mA | - | Shielded | 140mOhm | - | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASMCI-0603-4R7M-TFIXED IND 4.7UH 100MA 600MOHM SM Abracon LLC |
3,441 |
|
数据手册 |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 100 mA | - | Shielded | 600mOhm | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
