固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23S4R7CFIXED IND 4.7UH 1.6A 44MOHM SMD Murata Power Solutions Inc. |
4,490 |
|
数据手册 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | 1.6 A | - | Shielded | 44mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.126" (3.20mm) |
|
|
23S560CFIXED IND 56UH 500MA 509MOHM SMD Murata Power Solutions Inc. |
2,811 |
|
数据手册 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | - | 500 mA | - | Shielded | 509mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.126" (3.20mm) |
|
|
23S680CFIXED IND 68UH 450MA 641MOHM SMD Murata Power Solutions Inc. |
3,585 |
|
数据手册 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | - | 450 mA | - | Shielded | 641mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.126" (3.20mm) |
|
|
23S6R8CFIXED IND 6.8UH 1.4A 64MOHM SMD Murata Power Solutions Inc. |
4,494 |
|
数据手册 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | - | 1.4 A | - | Shielded | 64mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.126" (3.20mm) |
|

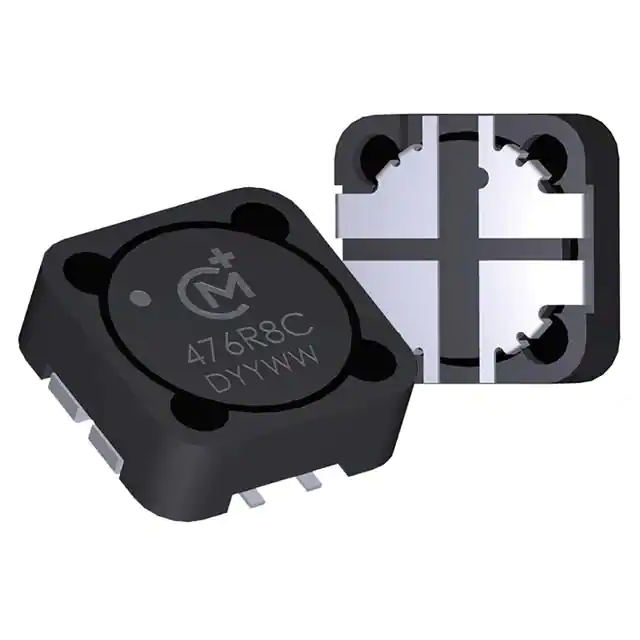

47100CFIXED IND 10UH 3.2A 70.2MOHM SMD Murata Power Solutions Inc. |
2,713 |
|
数据手册 |
4700 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 3.2 A | - | Shielded | 70.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
471R0CFIXED IND 1UH 9.5A 8.9 MOHM SMD Murata Power Solutions Inc. |
3,084 |
|
数据手册 |
4700 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | - | 9.5 A | - | Shielded | 8.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
48471SCFIXED IND 470UH 760MA 900MOHM SM Murata Power Solutions Inc. |
3,026 |
|
数据手册 |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 760 mA | - | Shielded | 900mOhm Max | 20 @ 800kHz | 4MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
|
46281CFIXED IND 280NH 8.7A 8 MOHM SMD Murata Power Solutions Inc. |
1,014 |
|
数据手册 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 280 nH | ±30% | 8.7 A | - | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
|
46541CFIXED IND 540NH 7.7A 10 MOHM SMD Murata Power Solutions Inc. |
4,574 |
|
数据手册 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 540 nH | ±30% | 7.7 A | - | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
|
46152CFIXED IND 1.5UH 6.3A 15MOHM SMD Murata Power Solutions Inc. |
2,276 |
|
数据手册 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 6.3 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
