固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQG18HNR10J00DFIXED IND 100NH 350MA 0.9OHM SMD Murata Electronics |
274,759 |
|
数据手册 |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 100 nH | ±5% | 350 mA | - | Unshielded | 900mOhm Max | 12 @ 100MHz | 800MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQM21PN1R0MC0DFIXED IND 1UH 800MA 238 MOHM SMD Murata Electronics |
83,090 |
|
数据手册 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 800 mA | - | Shielded | 238mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
.jpg)
|
LQM18PN1R0MFRLFIXED IND 1UH 950MA 250 MOHM SMD Murata Electronics |
61,670 |
|
数据手册 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | - | Shielded | 250mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQM21PN1R5MC0DFIXED IND 1.5UH 700MA 325MOHM SM Murata Electronics |
47,562 |
|
数据手册 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 700 mA | - | Shielded | 325mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
.jpg)
|
LQM21PN1R0NGRDFIXED IND 1UH 1.3A 82.5 MOHM SMD Murata Electronics |
35,708 |
|
数据手册 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±30% | 1.3 A | - | Shielded | 82.5mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQM2HPN1R5MG0LFIXED IND 1.5UH 1.5A 88 MOHM SMD Murata Electronics |
35,681 |
|
数据手册 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.5 A | - | Shielded | 88mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM21PN2R2NGCDFIXED IND 2.2UH 800MA 288MOHM SM Murata Electronics |
24,796 |
|
数据手册 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±30% | 800 mA | - | Shielded | 288mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

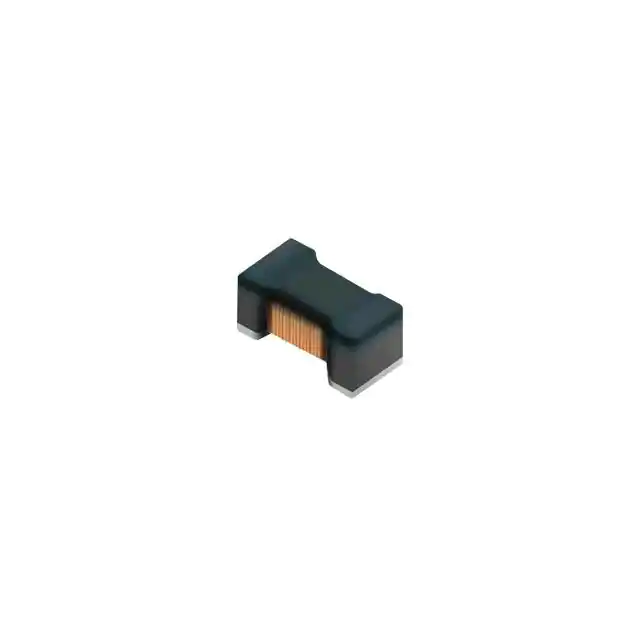

LQW15CE2R2M10DFIXED IND 2.2UH 85MA 1.8OHM SMD Murata Electronics |
19,488 |
|
数据手册 |
LQW15 | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 85 mA | 300mA | Unshielded | 1.8Ohm Max | - | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
LQG15WZ2N6B02DFIXED IND 2.6NH 900MA 0.07OHM SM Murata Electronics |
18,519 |
|
数据手册 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.6 nH | ±0.1nH | 900 mA | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQM21PNR47MC0DFIXED IND 470NH 1.1A 150MOHM SMD Murata Electronics |
17,293 |
|
数据手册 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.1 A | - | Shielded | 150mOhm Max | - | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
