固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

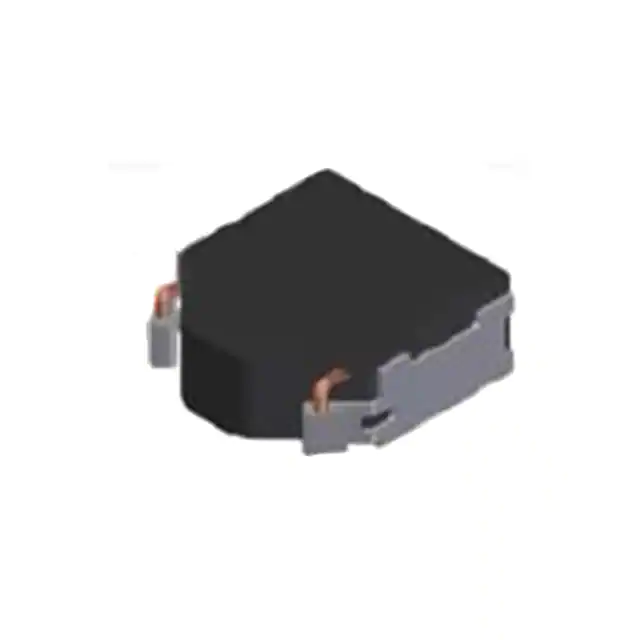

FDSD0630-H-1R0MB=P3FIXED IND 1UH 9.4A 11 MOHM SMD Murata Electronics |
3,665 |
|
数据手册 |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 9.4 A | 15A | Shielded | 11mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
DFE201210S-R47MCA=P2FIXED IND Murata Electronics |
1,542 |
|
数据手册 |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201208S-R47QS=P2FIXED IND Murata Electronics |
4,008 |
|
数据手册 |
DFE201208S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | - | 3 A | 4A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201208K-2R2M=P2FIXED IND Murata Electronics |
2,416 |
|
数据手册 |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201208K-R47M=P2FIXED IND Murata Electronics |
3,057 |
|
数据手册 |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201210S-1R0MCA=P2FIXED IND Murata Electronics |
3,038 |
|
数据手册 |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.3 A | 3.2A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201208K-1R0M=P2FIXED IND Murata Electronics |
1,020 |
|
数据手册 |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201210S-1R0MH=P2FIXED IND Murata Electronics |
2,985 |
|
数据手册 |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.3 A | 3.2A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R47MS=P2FIXED IND Murata Electronics |
2,866 |
|
数据手册 |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R24M=P2FIXED IND Murata Electronics |
4,376 |
|
数据手册 |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 240 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
