固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
#B966AS-3R9N=P3FIXED IND 3.9UH 5.6A 17 MOHM SMD Murata Electronics |
3,400 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 5.6 A | 7.1A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966AS-8R2N=P3FIXED IND 8.2UH 4.6A 24 MOHM SMD Murata Electronics |
3,724 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 4.6 A | 4.8A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966AS-160M=P3FIXED IND 16UH 2.7A 60 MOHM SMD Murata Electronics |
3,421 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 16 µH | ±20% | 2.7 A | 3.3A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966BS-270M=P3FIXED IND 27UH 2.3A 74 MOHM SMD Murata Electronics |
4,932 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.3 A | 2.4A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966BS-470M=P3FIXED IND 47UH 1.8A 120 MOHM SMD Murata Electronics |
1,400 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 1.8A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966BS-560M=P3FIXED IND 56UH 1.6A 145 MOHM SMD Murata Electronics |
3,203 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.6 A | 1.6A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966BS-680M=P3FIXED IND 68UH 1.4A 190 MOHM SMD Murata Electronics |
2,818 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.4 A | 1.4A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966BS-101M=P3FIXED IND 100UH 1.2A 255MOHM SMD Murata Electronics |
3,480 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.2A | Shielded | 255mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
#B966AS-1R8N=P3FIXED IND 1.8UH 6.7A 14 MOHM SMD Murata Electronics |
4,427 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 6.7 A | 9.8A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|

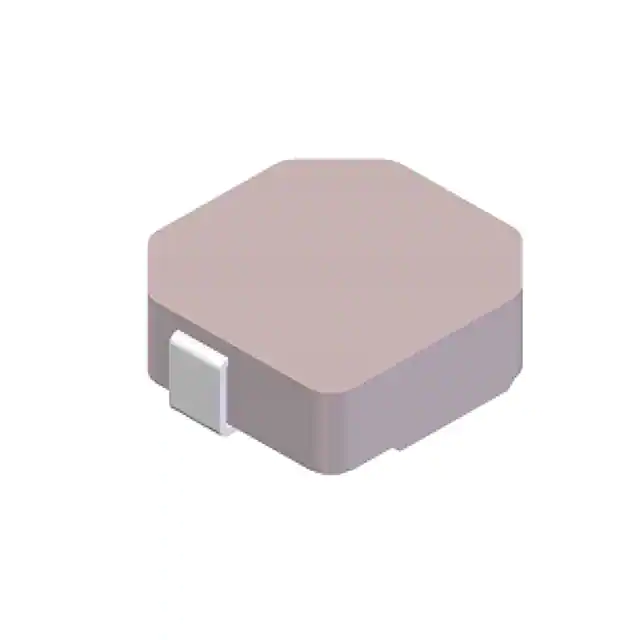

FCUL0530-R47M=P3FIXED IND 470NH 16A 2.85MOHM SMD Murata Electronics |
4,202 |
|
数据手册 |
- | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 16 A | 14A | Shielded | 2.85mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
