固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDVE1040-H-4R7M=P3FIXED IND 4.7UH 8A 13.8MOHM SMD Murata Electronics |
4,250 |
|
数据手册 |
FDVE1040 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 8 A | 8.2A | Unshielded | 13.8mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
FDVE1040-H-2R2M=P3FIXED IND Murata Electronics |
2,972 |
|
数据手册 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDVE1040-H-2R7M=P3FIXED IND Murata Electronics |
1,112 |
|
数据手册 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1235AS-H-1R2N=P3FIXED IND 1.2UH 2.9A 47 MOHM SMD Murata Electronics |
1,219 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 2.9 A | 3.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
1235AS-H-150M=P3FIXED IND 15UH 1.1A 192 MOHM SMD Murata Electronics |
1,389 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 980mA | Shielded | 192mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|

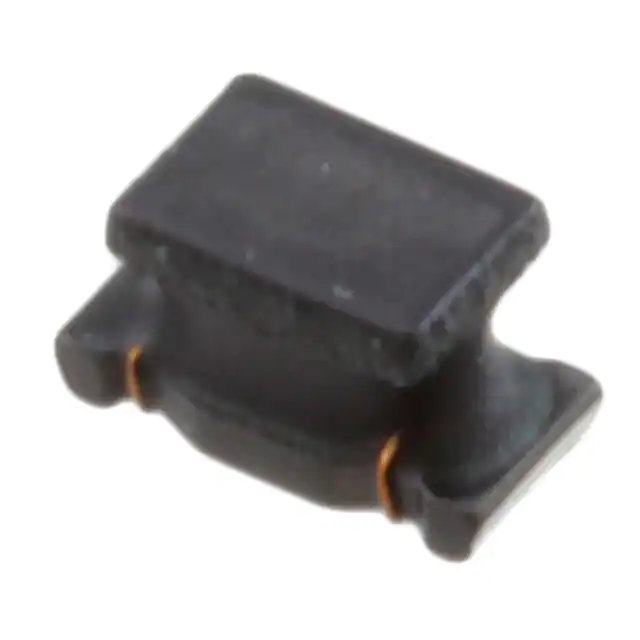

LQH31HNR39J03LFIXED IND 390NH 330MA 260MOHM SM Murata Electronics |
2,797 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 330 mA | - | - | 260mOhm | 60 @ 100MHz | 300MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
MBH6045C-221MA=P3FIXED IND Murata Electronics |
2,121 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH6045C-221MB=P3FIXED IND Murata Electronics |
3,408 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH6045C-101MA=P3FIXED IND Murata Electronics |
1,676 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH6045C-331MB=P3FIXED IND Murata Electronics |
1,157 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
