固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

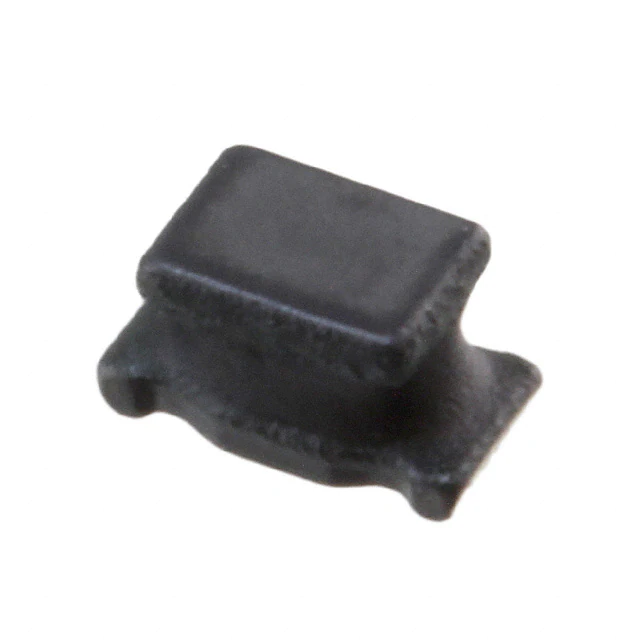

LQH31CNR47M03LFIXED IND 470NH 700MA 210MOHM SM Murata Electronics |
4,541 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±20% | 700 mA | - | Unshielded | 210mOhm Max | - | 180MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
LQH31MN150J03LFIXED IND 15UH 90MA 3.9 OHM SMD Murata Electronics |
2,123 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 90 mA | - | Unshielded | 3.9Ohm Max | 35 @ 5MHz | 16MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN1R5K03LFIXED IND 1.5UH 155MA 1.3OHM SMD Murata Electronics |
3,992 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 155 mA | - | Unshielded | 1.3Ohm Max | 35 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN220K03LFIXED IND 22UH 85MA 4.03 OHM SMD Murata Electronics |
4,590 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±10% | 85 mA | - | Unshielded | 4.03Ohm Max | 40 @ 2.5MHz | 14MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN2R2J03LFIXED IND 2.2UH 140MA 700MOHM SM Murata Electronics |
1,976 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 140 mA | - | Unshielded | 700mOhm | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN2R2K03LFIXED IND 2.2UH 140MA 910MOHM SM Murata Electronics |
3,110 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±10% | 140 mA | - | Unshielded | 910mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN330J03LFIXED IND 33UH 80MA 3.8 OHM SMD Murata Electronics |
4,621 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 80 mA | - | Unshielded | 3.8Ohm | 40 @ 2.5MHz | 12MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN3R3K03LFIXED IND 3.3UH 130MA 793MOHM SM Murata Electronics |
4,776 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 130 mA | - | Unshielded | 793mOhm Max | 35 @ 8MHz | 38MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN560K03LFIXED IND 56UH 50MA 11.57OHM SMD Murata Electronics |
1,018 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±10% | 50 mA | - | Unshielded | 11.57Ohm Max | 40 @ 2.5MHz | 9MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN680K03LFIXED IND 68UH 50MA 12.87OHM SMD Murata Electronics |
1,761 |
|
数据手册 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 50 mA | - | Unshielded | 12.87Ohm Max | 40 @ 2.5MHz | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
