固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

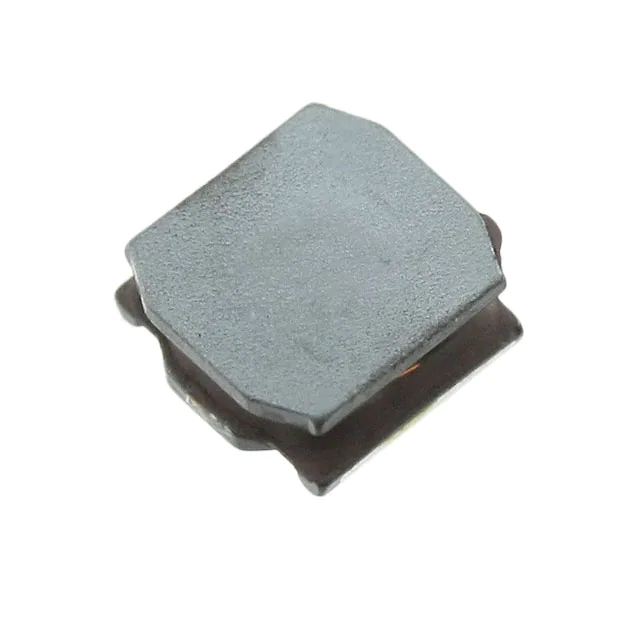

LQH44PN6R8MP0LFIXED IND 6.8UH 1.34A 144MOHM SM Murata Electronics |
3,412 |
|
数据手册 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.34 A | 1.4A | Shielded | 144mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN1R0NP0LFIXED IND 1UH 2.45A 36 MOHM SMD Murata Electronics |
4,116 |
|
数据手册 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.45 A | 2.95A | Shielded | 36mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQH3NPN100MJ0LFIXED IND 10UH 710MA 360MOHM SMD Murata Electronics |
3,361 |
|
数据手册 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 560mA | Shielded | 360mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
LQH3NPN150MM0LFIXED IND 15UH 730MA 432MOHM SMD Murata Electronics |
3,236 |
|
数据手册 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 730 mA | 520mA | Shielded | 432mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH3NPN4R7MJ0LFIXED IND 4.7UH 1.12A 156MOHM SM Murata Electronics |
1,099 |
|
数据手册 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.12 A | 780mA | Shielded | 156mOhm Max | - | 65MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
LQH3NPN6R8MJ0LFIXED IND 6.8UH 850MA 252MOHM SM Murata Electronics |
2,789 |
|
数据手册 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 700mA | Shielded | 252mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LQH2HPN2R2MJRLFIXED IND 2.2UH 990MA 110.4 MOHM Murata Electronics |
1,648 |
|
数据手册 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 990 mA | 1.7A | Shielded | 110.4mOhm Max | - | 50MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-Height-1.00mm.jpg)
|
DFE252010R-H-1R0M=P2FIXED IND 1UH 2.7A 0.068OHM SMD Murata Electronics |
1,887 |
|
数据手册 |
DFE252010R | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 2.7 A | 3A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
DFE252010R-H-1R5M=P2FIXED IND 1.5UH 2.1A 0.09OHM SMD Murata Electronics |
3,457 |
|
数据手册 |
DFE252010R | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.1 A | 2.3A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
DFE252010R-H-2R2M=P2FIXED IND 2.2UH 1.7A 0.126OHM SM Murata Electronics |
2,621 |
|
数据手册 |
DFE252010R | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 1.7 A | 2.1A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
