固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

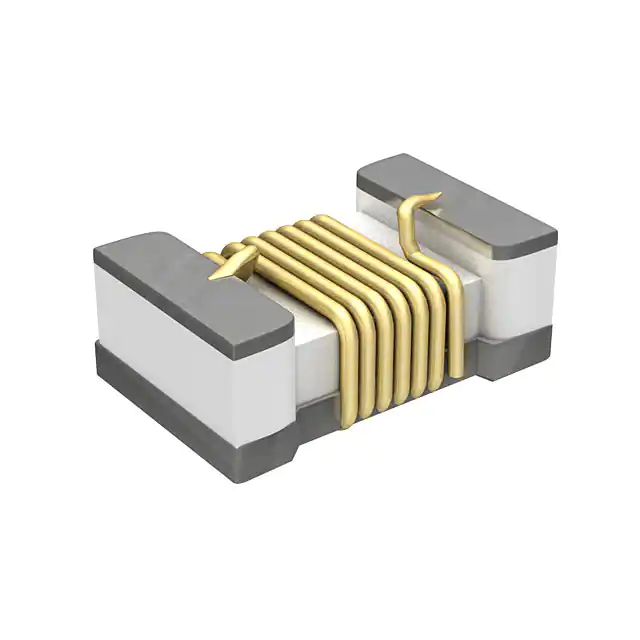

LQW03AW6N8J00DFIXED IND 6.8NH 460MA 180MOHM SM Murata Electronics |
11,829 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 6.8 nH | ±5% | 460 mA | - | Unshielded | 180mOhm Max | 42 @ 900MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW14NJ00DFIXED IND 13.5NH 240MA 530 MOHM Murata Electronics |
8,371 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 13.5 nH | ±5% | 240 mA | - | Unshielded | 530mOhm Max | 37 @ 900MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW8N2J00DFIXED IND 8.2NH 290MA 260MOHM SM Murata Electronics |
7,128 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 8.2 nH | ±5% | 290 mA | - | Unshielded | 260mOhm Max | 40 @ 900MHz | 8.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW4N7J00DFIXED IND 4.7NH 620MA 90MOHM SMD Murata Electronics |
6,541 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 nH | ±5% | 620 mA | - | Unshielded | 90mOhm Max | 45 @ 900MHz | 9.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW15NJ00DFIXED IND 15.5NH 230MA 600 MOHM Murata Electronics |
4,297 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15.5 nH | ±5% | 230 mA | - | Unshielded | 600mOhm Max | 38 @ 900MHz | 5.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
1235AS-H-100M=P3FIXED IND 10UH 1.7A 132 MOHM SMD Murata Electronics |
14,159 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 1.3A | Shielded | 132mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
1235AS-H-6R8M=P3FIXED IND 6.8UH 1.9A 106MOHM SMD Murata Electronics |
4,842 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | 1.7A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
1227AS-H-1R0N=P2FIXED IND 1UH 3.7A 29 MOHM SMD Murata Electronics |
81,368 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.7 A | 2.3A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|
|
LQW03AW2N2C00DFIXED IND 2.2NH 400MA 160MOHM SM Murata Electronics |
16,904 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 nH | ±0.2nH | 400 mA | - | Unshielded | 160mOhm Max | 33 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW3N9C00DFIXED IND 3.9NH 650MA 70MOHM SMD Murata Electronics |
14,379 |
|
数据手册 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.9 nH | ±0.2nH | 650 mA | - | Unshielded | 70mOhm Max | 48 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
