固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-5.0-50FIXED IND 52UH 5A 25 MOHM SMD Amgis, LLC |
1,407 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 52 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
SH260S-5.0-50FIXED IND 52UH 5A 25 MOHM SMD Amgis, LLC |
1,109 |
|
数据手册 |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 52 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
SH150S-2.50-167FIXED IND 167UH 2.5A 140MOHM SMD Amgis, LLC |
3,481 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.213" L x 1.000" W (30.80mm x 25.40mm) | 0.514" (13.05mm) |
|

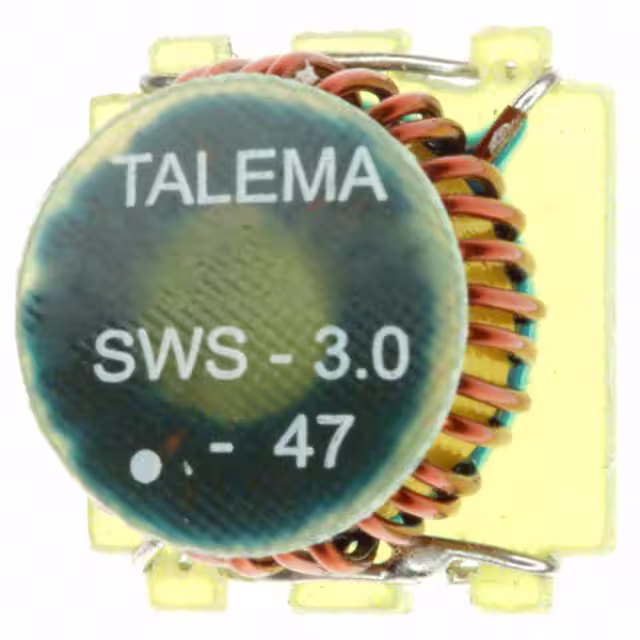

SWS-3.0-47FIXED IND 47UH 3A 50 MOHM SMD Amgis, LLC |
4,472 |
|
数据手册 |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.435" (11.05mm) |
|
SWS-0.36-375FIXED IND 375UH 360MA 1.3OHM SMD Amgis, LLC |
1,880 |
|
数据手册 |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
SWS-4.50-19FIXED IND 19UH 4.5A 20 MOHM SMD Amgis, LLC |
2,983 |
|
数据手册 |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | 19 µH | ±20% | 4.5 A | - | Unshielded | 20mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
SWT-0.2-374FIXED IND 374UH 200MA 2.7 OHM TH Amgis, LLC |
4,277 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 374 µH | ±20% | 200 mA | - | Unshielded | 2.7Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.25-256FIXED IND 256UH 250MA 2.2 OHM TH Amgis, LLC |
3,437 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 256 µH | ±20% | 250 mA | - | Unshielded | 2.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.30-176FIXED IND 176UH 300MA 1.4 OHM TH Amgis, LLC |
3,354 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 176 µH | ±20% | 300 mA | - | Unshielded | 1.4Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.38-118FIXED IND 118UH 380MA 1.2 OHM TH Amgis, LLC |
1,461 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 118 µH | ±20% | 380 mA | - | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
